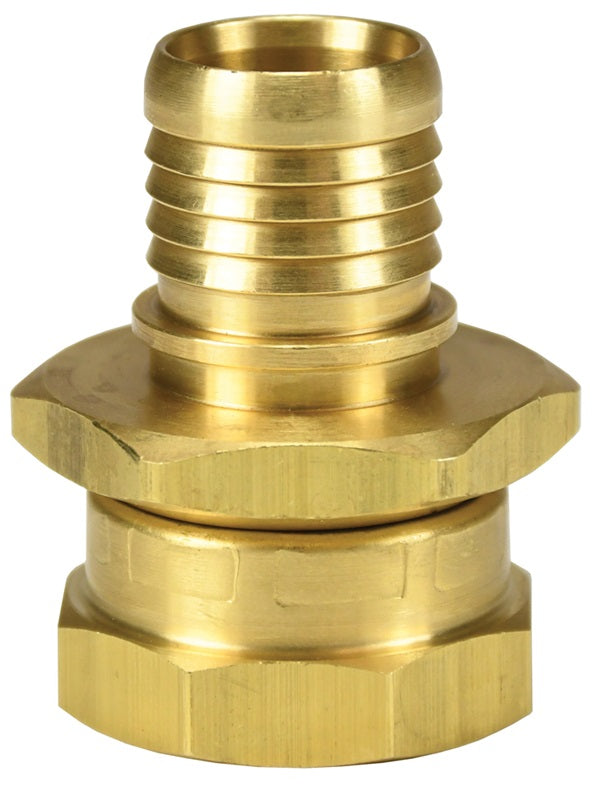

H5221CS by Dixon Valve | Holedall® Crimp Fuel Oil Female Coupling | 1-1/4" Female NPSH x 1-1/4" Hose ID | Brass

Name: H5221CS by Dixon Valve | Holedall® Crimp Fuel Oil Female Coupling | 1-1/4" Female NPSH x 1-1/4" Hose ID | Brass
Brand: Dixon
SKU: H5221CS Dixon
Price: 38.25 USD
Availability: InStock

Save $25.50

$63.75

$63.75 - $63.75

$63.75

$38.25

$38.25 - $38.25

$38.25

Dixon Valve
Holedall® Crimp Fuel Oil Female Coupling

Recommended for discharge and suction service. Commonly used in the transfer of fuel to homes, airplanes, ships, etc.

Designed for crimp

Quantity

Specifications for Variant SKU: H5221CS Dixon
Brand:	Holedall
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Female NPSH, 1-1/4in Hose Barb
Material(s):	Brass

Features:
Crimpable brass ferrule & stem to outfit fuel oil hose assemblies. Same ferrules are used as internal expansions. Designed with a short shank so it can be used on hose reels. Crimping is not only faster but does not require dedicated tooling for internal expansion. No additional equipment is needed if already performing crimping.
Specification:
Working pressure: 250 PSI

Holedall® Crimp Fuel Oil Female Coupling

Brass Part Number	Thread Type	Hose ID
H5211CS	1" Female NPSH	1"
H5221CS	1-1/4" Female NPSH	1-1/4"
H5271CS	1-3/8" Female NPSH	1-3/8"
H5231CS	1-1/2" Female NPSH	1-1/2"

Holedall® Crimp Fuel Oil Male Coupling

Brass Part Number	Thread Type	Hose ID
H5212CS	1" Male NPT	1"
H5222CS	1-1/4" Male NPT	1-1/4"
H5272CS	1-3/8" Male NPT	1-3/8"
H5232CS	1-1/2" Male NPT	1-1/2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
