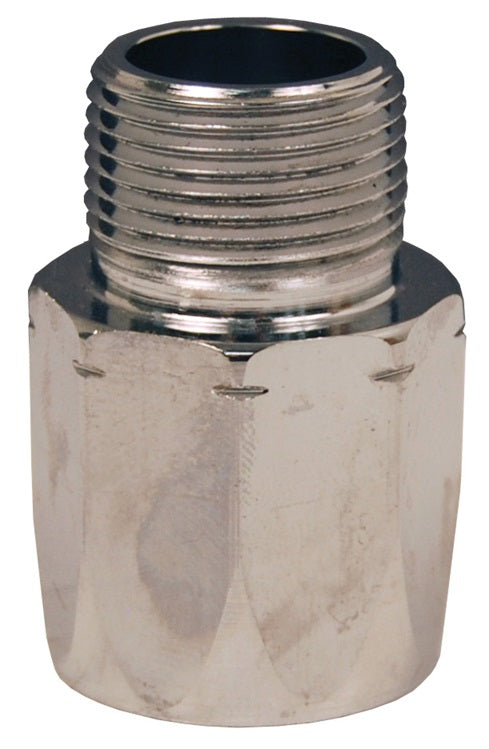

H5755 by Dixon Valve | Holedall® Pump Hose Coupling | 3/4" Hose ID | 3/4" Male NPT | 1-17/64" Hose OD | Chrome Plated Brass

H5755 by Dixon Valve | Holedall® Pump Hose Coupling | 3/4" Hose ID | 3/4" Male NPT | 1-17/64" Hose OD | Chrome Plated Brass

Save $2.76 Save $2.76
$24.83
$24.83 - $24.83
$24.83
$22.07
$22.07 - $22.07
$22.07

Dixon Valve
Holedall® Pump Hose Coupling

Economical and trouble-free couplings for gas pump hose.
Specifications for Variant SKU: H5755 Dixon
Brand: Holedall
Shape (Orientation): Straight
Material(s): Chrome Plated Brass
Features:
  • Serrations on the stem embed in the hose, eliminating wicking and leakage.
  • Shell extends beyond the stem preventing cutting of interior walls; tapered ends of stem and shell protect hose when flexed.
  • Provide tamper-proof static connection, which cannot be broken without completely damaging coupling and hose.
  • Internal expansion of stem to nominal I.D. of hose provides full flow.
  • Broad, firm grip of coupling extends hose life by making it possible for hose to withstand repeated bending.
  • Hand and electrically operated installation equipment is available; consult Dixon® for pricing and availability.
Approvals:
  • UL Approved
Safety Notes:
  • Reattach static wire if required.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
Chrome Plated Brass
Part Number		 Hose ID Size Male NPT Hose OD
H5751 3/4" 3/4" 1-9/64"
H5752 3/4" 3/4" 1-11/64"
H5753 3/4" 3/4" 1-13/64"
H5754 3/4" 3/4" 1-7/32"
H5755* 3/4" 3/4" 1-17/64"
H5771 1" 1" 1-25/64"
H5772 1" 1" 1-29/64"
H5773 1" 1" 1-1/2"
H5774 1" 1" 1-9/16"

* Thrust plate required, part # 25000HTL15

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
