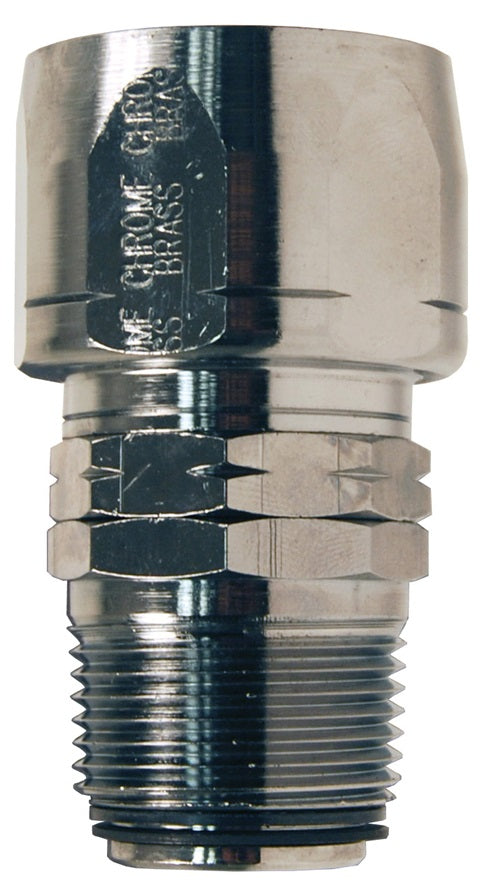

H604 by Dixon Valve | Holedall® Dubl-Grip | Field Attachable Coupling for Curb Pump Hose | Swivel | 3/4" Hose ID | 3/4" Male NPT | 1-13/64" Hose OD | Chrome Plated Brass

H604 by Dixon Valve | Holedall® Dubl-Grip | Field Attachable Coupling for Curb Pump Hose | Swivel | 3/4" Hose ID | 3/4" Male NPT | 1-13/64" Hose OD | Chrome Plated Brass

Save $2.88 Save $2.88
$25.95
$25.95 - $25.95
$25.95
$23.07
$23.07 - $23.07
$23.07

Dixon Valve
Holedall® Dubl-Grip Field Attachable Swivel Couplings for Curb Pump Hose

Streamlined design prevents damage to hose and fits well on new pump equipment.
Specifications for Variant SKU: H604 Dixon
Brand: Holedall
Series: Dubl-Grip
Shape (Orientation): Straight
Material(s): Chrome Plated Brass
Special Properties: Swivel
Features:
  • Two-piece construction.
  • Streamline design prevents damage to the hose and fits well on new pump equipment.
  • Wide, flat surfaces of body threads protect inside of hose from breaking.
  • Tapered surfaces of sleeve and body cradle hose, prevent one-point strain from flexing.
  • Hose is gripped on its full circumference in two places, ensuring a rigid leak-proof connection.
  • Couplings have standard male NPT threads.
Installation:
  • Easy assembly: hose is held in position by sleeve as body is threaded home, only a wrench is required to assemble the Dubl-Grip®.
Safety Notes:
  • Reattach static wire if required.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
Specifications:
  • UL recognized
Swivel
Chrome Plated Brass
Part Number		 Non-Swivel
Chrome Plated Brass
Part Number		 Hose ID Male NPT Hose OD
H603 850451 3/4" 3/4" 1-1/8"
H604 850455 3/4" 3/4" 1-13/64"
H605 850453 3/4" 3/4" 1-1/4"
H609* 850841* 1" 1" 1-3/8"
H610* 850801* 1" 1" 1-7/16"
H611* 850811* 1" 1" 1-1/2"

* Octagonal shape
