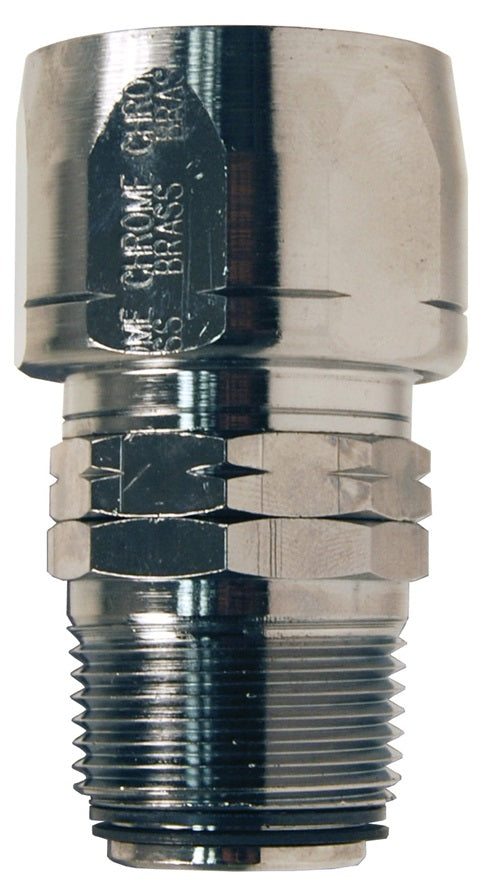

H611 by Dixon Valve | Holedall® Dubl-Grip | Field Attachable Coupling for Curb Pump Hose | Swivel | 1" Hose ID | 1" Male NPT | 1-1/2" Hose OD | Chrome Plated Brass

Save $4.55

$40.95

$40.95 - $40.95

$40.95

$36.40

$36.40 - $36.40

$36.40

Dixon Valve
Holedall® Dubl-Grip Field Attachable Swivel Couplings for Curb Pump Hose

Streamlined design prevents damage to hose and fits well on new pump equipment.

Quantity

Specifications for Variant SKU: H611 Dixon
Brand:	Holedall
Series:	Dubl-Grip
Shape (Orientation):	Straight
Material(s):	Chrome Plated Brass
Special Properties:	Swivel

Features:
Two-piece construction. Streamline design prevents damage to the hose and fits well on new pump equipment. Wide, flat surfaces of body threads protect inside of hose from breaking. Tapered surfaces of sleeve and body cradle hose, prevent one-point strain from flexing. Hose is gripped on its full circumference in two places, ensuring a rigid leak-proof connection. Couplings have standard male NPT threads.
Installation:
Easy assembly: hose is held in position by sleeve as body is threaded home, only a wrench is required to assemble the Dubl-Grip®.
Safety Notes:
Reattach static wire if required. Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
Specifications:
UL recognized

Swivel Chrome Plated Brass Part Number	Non-Swivel Chrome Plated Brass Part Number	Hose ID	Male NPT	Hose OD
H603	850451	3/4"	3/4"	1-1/8"
H604	850455	3/4"	3/4"	1-13/64"
H605	850453	3/4"	3/4"	1-1/4"
H609*	850841*	1"	1"	1-3/8"
H610*	850801*	1"	1"	1-7/16"
H611*	850811*	1"	1"	1-1/2"

* Octagonal shape
