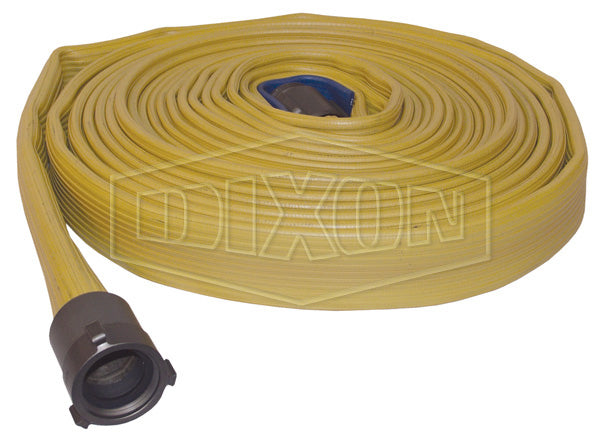

H625Y50PBF Dixon Nitrile Covered Fire Hose - Heavy Duty - Yellow - Coupled - Fem. x Male NST(NH) Expansion Ring Couplings (Brass) - 2-1/2" Hose Size - 2-13/16" Bowl Size - 50ft Length

H625Y50PBF Dixon Nitrile Covered Fire Hose - Heavy Duty - Yellow - Coupled - Fem. x Male NST(NH) Expansion Ring Couplings (Brass) - 2-1/2" Hose Size - 2-13/16" Bowl Size - 50ft Length

Save $477.53 Save $477.53
$1,193.82
$1,193.82 - $1,193.82
$1,193.82
$716.29
$716.29 - $716.29
$716.29

Dixon Fire Fittings
Fire Hose - Nitrile Covered Fire Hose - Heavy Duty - Yellow - Coupled

Ideal for heavy-duty washdown in refineries and power plants.
Specifications for Variant SKU: H625Y50PBF Dixon
Series: Fire Hose
Hose Color(s): Yellow
Internal Diameter: 2.50in
Tubing Construction: Nitrile
Cover Construction: Nitrile
Ends Configuration: 2-1/2in Female NST, 2-1/2in Male NST
Features:
  • Extruded interlocking matrix fire hose with 100% synthetic circular woven polyester reinforcement.
  • Heavy ribbed for severe service.
  • Outer construction: thick ribbed nitrile.
  • Tube construction: nitrile.
Size Proof Pressure @
Ambient Temperature
(70 deg. F):		 Service Test Pressure @
Ambient Temperature
(70 deg. F):		 Working Pressure @
Ambient Temperature
(70 deg. F):
1" - 3" 600 PSI 300 PSI 270 PSI
4" 450 PSI 225 PSI 200 PSI
5" 400 PSI 200 PSI 180 PSI
6" 300 PSI 150 PSI 135 PSI
Part Number Size Bowl Length Weight
(Lbs.)
Coupled with Female x Male NST(NH) Aluminum Expansion Ring Couplings - Rocker Lug
H610Y50RAF 1" 1-1/4" 50 ft 9.0900
H615Y50RAF 1-1/2" 1-13/16" 50 ft 15.2000
H625Y50RAF 2-1/2" 2-13/16" 50 ft 30.5000
Coupled with Female x Male NST(NH) Brass Expansion Ring Couplings - Rocker Lug
H615Y50RBF 1-1/2" 1-13/16" 50 ft 17.8600
H625Y50RBF 2-1/2" 2-13/16" 50 ft 34.0000
Coupled with Female x Male NST(NH) Brass Expansion Ring Couplings - Pin Lug
H615Y50PBF 1-1/2" 1-13/16" 50 ft 17.8600
H625Y50PBF 2-1/2" 2-13/16" 50 ft 34.0000
Coupled with Female x Male NPSH Aluminum Expansion Ring Couplings - Rocker Lug
H610Y50RAS 1" 1-1/4" 50 ft 8.7800
H615Y50RAS 1-1/2" 1-13/16" 50 ft 16.5100
H625Y50RAS 2-1/2" 2-13/16" 50 ft 30.5000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
