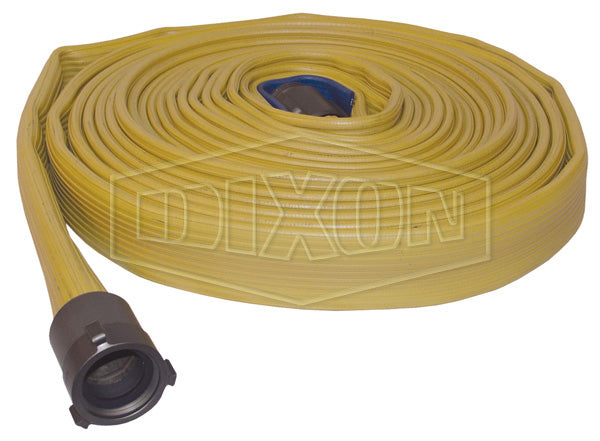

H625Y50RBF Dixon Nitrile Covered Fire Hose - Heavy Duty - Yellow - Coupled - Fem. x Male NST(NH) Expansion Ring Couplings (Brass) - 2-1/2" Hose Size - 2-13/16" Bowl Size - 50ft Length

H625Y50RBF Dixon Nitrile Covered Fire Hose - Heavy Duty - Yellow - Coupled - Fem. x Male NST(NH) Expansion Ring Couplings (Brass) - 2-1/2" Hose Size - 2-13/16" Bowl Size - 50ft Length

Save $73.85 Save $73.85
$664.63
$664.63 - $664.63
$664.63
$590.78
$590.78 - $590.78
$590.78

Dixon Fire Fittings
Fire Hose - Nitrile Covered Fire Hose - Heavy Duty - Yellow - Coupled

Ideal for heavy-duty washdown in refineries and power plants.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: H625Y50RBF Dixon
Series: Fire Hose
Hose Color(s): Yellow
Internal Diameter: 2.50in
Tubing Construction: Nitrile
Cover Construction: Nitrile
Ends Configuration: 2-1/2in Female NST, 2-1/2in Male NST
Features:
  • Extruded interlocking matrix fire hose with 100% synthetic circular woven polyester reinforcement.
  • Heavy ribbed for severe service.
  • Outer construction: thick ribbed nitrile.
  • Tube construction: nitrile.
Size Proof Pressure @
Ambient Temperature
(70 deg. F):		 Service Test Pressure @
Ambient Temperature
(70 deg. F):		 Working Pressure @
Ambient Temperature
(70 deg. F):
1" - 3" 600 PSI 300 PSI 270 PSI
4" 450 PSI 225 PSI 200 PSI
5" 400 PSI 200 PSI 180 PSI
6" 300 PSI 150 PSI 135 PSI
Part Number Size Bowl Length Weight
(Lbs.)
Coupled with Female x Male NST(NH) Aluminum Expansion Ring Couplings - Rocker Lug
H610Y50RAF 1" 1-1/4" 50 ft 9.0900
H615Y50RAF 1-1/2" 1-13/16" 50 ft 15.2000
H625Y50RAF 2-1/2" 2-13/16" 50 ft 30.5000
Coupled with Female x Male NST(NH) Brass Expansion Ring Couplings - Rocker Lug
H615Y50RBF 1-1/2" 1-13/16" 50 ft 17.8600
H625Y50RBF 2-1/2" 2-13/16" 50 ft 34.0000
Coupled with Female x Male NST(NH) Brass Expansion Ring Couplings - Pin Lug
H615Y50PBF 1-1/2" 1-13/16" 50 ft 17.8600
H625Y50PBF 2-1/2" 2-13/16" 50 ft 34.0000
Coupled with Female x Male NPSH Aluminum Expansion Ring Couplings - Rocker Lug
H610Y50RAS 1" 1-1/4" 50 ft 8.7800
H615Y50RAS 1-1/2" 1-13/16" 50 ft 16.5100
H625Y50RAS 2-1/2" 2-13/16" 50 ft 30.5000
