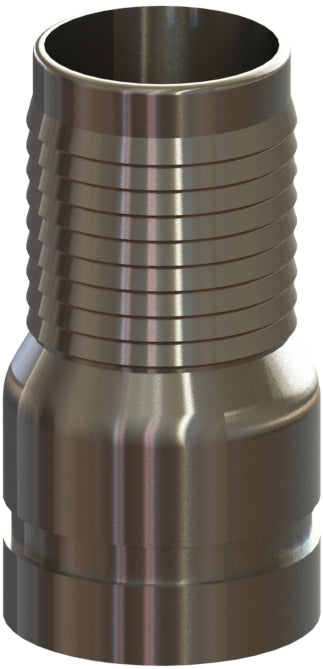

HAGSS-16 by Campbell Fittings | Grooved Combination Nipple | 4" Female NPT Thread x 4" Hose Barb | 316 Stainless Steel

HAGSS-16 by Campbell Fittings | Grooved Combination Nipple | 4" Female NPT Thread x 4" Hose Barb | 316 Stainless Steel

Save $102.51 Save $102.51
$256.27
$256.27 - $256.27
$256.27
$153.76
$153.76 - $153.76
$153.76

by Campbell
Combination Nipples & Menders:HAGSS Grooved Combination Nipple
Specifications for Variant SKU: HAGSS-16 Campbell Fittings
Series: HAGSS Series
Shape (Orientation): Straight
Ends Configuration: 4in Female NPT, 4in Hose Barb
Material(s): 316 Stainless Steel
Recommended Use:
  • Liquid, bulk handling, low pressure air
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation
Part Number Hose Size
HAGSS-4 1"
HAGSS-5 1-1/4"
HAGSS-6 1-1/2"
HAGSS-8 2"
HAGSS-12 3"
HAGSS-16 4"
HAGSS-20 5"
HAGSS-24 6"
HAGSS-32 8"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
