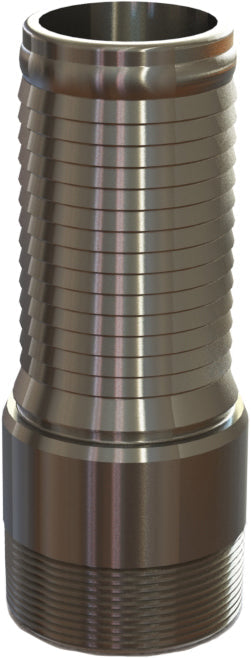

HALPS-12C by Campbell Fittings | SCH. 80 Threaded Shank | 3" Male NPT Thread x 3" Hose Barb | Long | Plated Steel

HALPS-12C by Campbell Fittings | SCH. 80 Threaded Shank | 3" Male NPT Thread x 3" Hose Barb | Long | Plated Steel

Save $49.32 Save $49.32
$123.30
$123.30 - $123.30
$123.30
$73.98
$73.98 - $73.98
$73.98

by Campbell
Crimpnology Nipples:HALPS SCH. 80 Threaded Long Shank
Specifications for Variant SKU: HALPS-12C Campbell Fittings
Series: HALPS Series
Shape (Orientation): Straight
Ends Configuration: 3in Male NPT, 3in Hose Barb
Material(s): Plated Steel
Special Properties: Long
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles
Special Features:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
  • Long Shank Crimpnology nipples provide excellent sealing and retention for high-pressure application (See ratings chart)
Part Number Hose Size
HALPS-6C 1-1/2"
HALPS-8C 2"
HALPS-10C 2-1/2"
HALPS-12C 3"
HALPS-16C 4"
