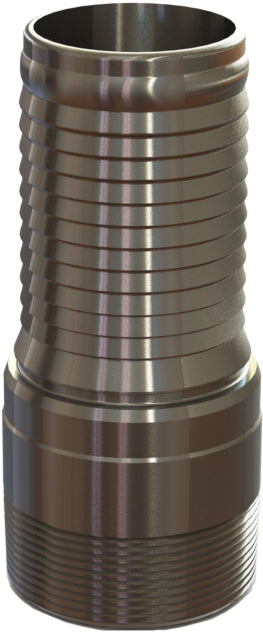

HASS-4C by Campbell Fittings | Threaded Crimpnology Nipple | 1" Male NPT Thread x 1" Hose Barb | 316 Stainless Steel

HASS-4C by Campbell Fittings | Threaded Crimpnology Nipple | 1" Male NPT Thread x 1" Hose Barb | 316 Stainless Steel

Save $10.87 Save $10.87
$43.15
$43.15 - $43.15
$43.15
$32.28
$32.28 - $32.28
$32.28

by Campbell
Crimpnology Nipples:HASS Threaded Crimpnology Nipple
Specifications for Variant SKU: HASS-4C Campbell Fittings
Series: HASS Series
Shape (Orientation): Straight
Ends Configuration: 1in Male NPT, 1in Hose Barb
Material(s): 316 Stainless Steel
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles
Special Features:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
Part Number Hose Size
HASS-4C 1"
HASS-5C 1-1/4"
HASS-6C 1-1/2"
HASS-8C 2"
HASS-10C 2-1/2"
HASS-12C 3"
HASS-16C 4"
HASS-20C 5"
HASS-24C 6"
HASS-32C 8"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
