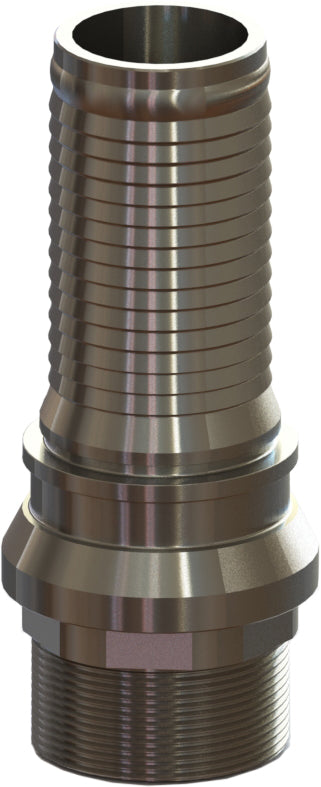

HASS-4C SW by Campbell Fittings | Crimpnology Nipple | 1" Male Swivel x 1" Hose Barb | 316 Stainless Steel

HASS-4C SW by Campbell Fittings | Crimpnology Nipple | 1" Male Swivel x 1" Hose Barb | 316 Stainless Steel

Save $116.03 Save $116.03
$290.08
$290.08 - $290.08
$290.08
$174.05
$174.05 - $174.05
$174.05

by Campbell
Crimpnology Nipple:HASS SW & HALSS SW Male Swivel Nipple
Specifications for Variant SKU: HASS-4C SW Campbell Fittings
Series: HASS SW Series
Shape (Orientation): Straight
Ends Configuration: 1in Male NPT, 1in Hose Barb
Material(s): 316 Stainless Steel
Special Properties: Swivel
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles
Special Features:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
Part Number Hose Size
HASS-3C SW 3/4"
HASS-4C SW 1"
HALSS-5C SW 1-1/4"
HALSS-8C SW 2"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.

Shop Parts by Campbell Fittings
