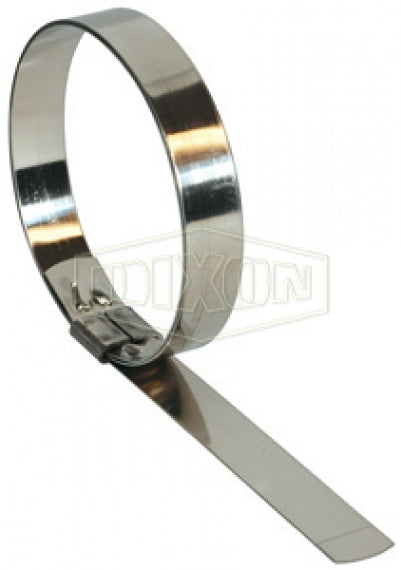

HBC4S by Dixon Valve | HBC-Series | Smooth I.D. Center Punch Clamp | 5/8" Band Width | 1" Clamp ID | 201 Stainless Steel Band | Box of 100

Save $24.17

$217.50

$217.50 - $217.50

$217.50

$193.33

$193.33 - $193.33

$193.33

Dixon Valve
Smooth I.D. Center Punch Clamps | HBC-Series

Recommended for use in applications where conditions are highly corrosive.

Ideal for thin wall hose.

Package Quantity: 100 EA

Quantity

Specifications for Variant SKU: HBC4S Dixon \| 100 \|
Series:	HBC-Series
Material(s):	201 Stainless Steel
Clamp Thickness:	0.025
Clamp Width:	0.625
Maximum Clamp I.D.:	1

Features:
Unique dimple design offers excellent sealing strength while maintaining radial compression. Heavy buckle provides optimal holding power. Low profile clamp.
Installation Tools:
Double wrapped and locked with the conical punch of the F100 tool.

201 Stainless Steel Part Number	Band Width	Clamp ID	Band Thickness
HBC4S	5/8"	1"	.025"
HBC5S	5/8"	1-1/4"	.025"
HBC6S	5/8"	1-1/2"	.025"
HBC7S	5/8"	1-3/4"	.025"
HBC8S	5/8"	2"	.025"
HBC9S	5/8"	2-1/4"	.025"
HBC10S	5/8"	2-1/2"	.025"
HBC11S	5/8"	2-3/4"	.025"
HBC12S	5/8"	3"	.025"
HBC14S	5/8"	3-1/2"	.025"
HBC16S	5/8"	4"	.025"
HBC18S	5/8"	4-1/2"	.025"
HBC20S	5/8"	5"	.025"
HBC24S	5/8"	6"	.025"
HBC28S	5/8"	7"	.025"
HBC32S	5/8"	8"	.025"
