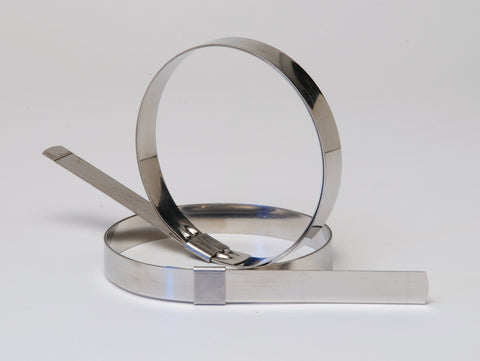

HBJS306 by Strapbinder | Smooth-Seal™ J-Series | 1-3/4" ID | 5/8" Width | .027" Thickness | Galvanized Steel | Box of 100

HBJS306 by Strapbinder | Smooth-Seal™ J-Series | 1-3/4" ID | 5/8" Width | .027" Thickness | Galvanized Steel | Box of 100

Save $66.32 Save $66.32
$165.80
$165.80 - $165.80
$165.80
$99.48
$99.48 - $99.48
$99.48

by Strapbinder
Preformed Hose Clamps:Galvanized Steel Smooth-Seal™ J-Series

Package Quantity: 100 EA

Specifications for Variant SKU: HBJS306 Strapbinder | 100 |
Brand: Smooth-Seal™
Series: J-Series
Material(s): Galvanized Steel
Special Properties: Heavy Duty
Clamp Thickness: .027
Clamp Width: 5/8
Minimum Clamp I.D.: 1-3/4
Features:
  • Double wrapped, preformed clamps lock securely and require no hammering.
  • Specially designed inside tab eliminates leak paths common with thin-wall hose.
  • Easily lock under full tension by one lifting movement.
  • These clamps are not for use with punch type tools.
Tools for Products:
  • Any of the bench mounted, pneumatic machines in the industry.
Part Number Clamp ID Band Width Band Thickness Material Weight
HBJS201 13/16" 3/8" .025" Stainless Steel 3.6 lbs
HBJS243 1-3/16" 3/8" .025" Stainless Steel 3.4 lbs
HBJS202 1-3/8" 3/8" .025" Stainless Steel 4.7 lbs
HBJS203 1" 1/2" .030" Stainless Steel 6.5 lbs
HBJS204 1-1/4" 1/2" .030" Stainless Steel 7.2 lbs
HBJS205 1-1/2" 5/8" .030" Stainless Steel 10.4 lbs
HBJS206 1-3/4" 5/8" .030" Stainless Steel 11.3 lbs
HBJS245 2" 3/8" .025" Stainless Steel 5.5 lbs
HBJS207 2" 5/8" .030" Stainless Steel 12.2 lbs
HBJS208 2-1/4" 5/8" .030" Stainless Steel 13.3 lbs
HBJS209 2-1/2" 5/8" .030" Stainless Steel 13.9 lbs
HBJS210 2-3/4" 3/4" .030" Stainless Steel 9.2 lbs
HBJS211 3" 5/8" .030" Stainless Steel 9.7 lbs
HBJS212 3-1/2" 5/8" .030" Stainless Steel 10.8 lbs
HBJS213 4" 3/4" .030" Stainless Steel 6.1 lbs
HBJS214 4-1/2" 3/4" .030" Stainless Steel 6.7 lbs
HBJS215 5" 3/4" .030" Stainless Steel 7.2 lbs
HBJS216 6" 3/4" .030" Stainless Steel 8.2 lbs
HBJS218 7" 3/4" .030" Stainless Steel 10.2 lbs
HBJS219 8" 3/4" .030" Stainless Steel 11.0 lbs
HBJS301 13/16" 3/8" .027" Galvanized Steel 3.6 lbs
HBJS343 1" 3/8" .027" Galvanized Steel 3.9 lbs
HBJS302 1-3/8" 3/8" .027" Galvanized Steel 4.7 lbs
HBJS304 1-1/4" 1/2" .027" Galvanized Steel 7.2 lbs
HBJS305 1-1/2" 5/8" .027" Galvanized Steel 10.4 lbs
HBJS306 1-3/4" 5/8" .027" Galvanized Steel 11.3 lbs
HBJS307 2" 5/8" .027" Galvanized Steel 12.2 lbs
HBJS309 2-1/2" 5/8" .027" Galvanized Steel 6.3 lbs
HBJS311 3" 3/4" .027" Galvanized Steel 9.7 lbs
HBJS312 3-1/2" 3/4" .027" Galvanized Steel 10.8 lbs
HBJS313 4" 3/4" .027" Galvanized Steel 6.1 lbs
HBJS314 4-1/2" 3/4" .027" Galvanized Steel 6.7 lbs
HBJS315 5" 3/4" .027" Galvanized Steel 8.2 lbs
Strapbinder

Strapbinder

Strapbinder is a leading global producer and manufacturer of stainless steel banding, preformed clamps, buckles, tools, and securement hardware. As a part of the Ideal Tridon Group, Strapbinder brings you over 100 years of quality engineered solutions.
