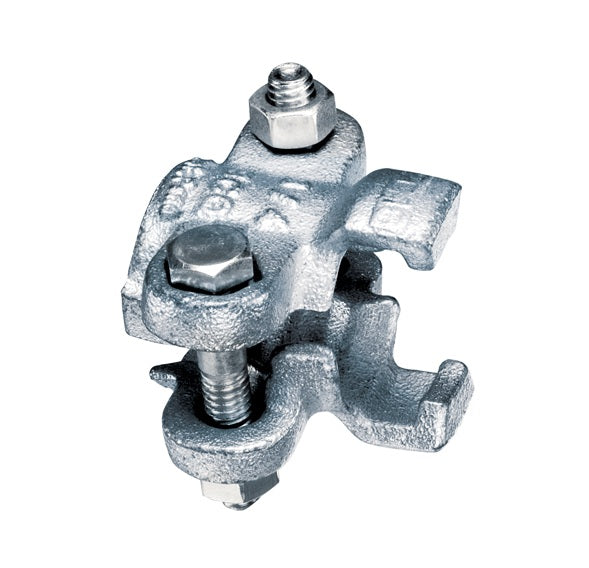

HC-100 by Kuriyama | HC Series | 2-Bolt Interlocking Hose Clamp | for Universal Air Hose Coupling | Fits: 1-17/32" to 1-21/32" Size Range | Zinc Plated Carbon Steel

HC-100 by Kuriyama | HC Series | 2-Bolt Interlocking Hose Clamp | for Universal Air Hose Coupling | Fits: 1-17/32" to 1-21/32" Size Range | Zinc Plated Carbon Steel

Save $6.62 Save $6.62
$11.61
$11.61 - $11.61
$11.61
$4.99
$4.99 - $4.99
$4.99

Kuriyama of America Inc.
HC Series | 2-Bolt Interlocking Hose Clamp for Universal Air Hose Coupling | Zinc Plated Carbon Steel

Applications include compressed air systems and pneumatic tools.

Designed for compressed air and water service only.
Specifications for Variant SKU: HC-100 Kuriyama
Series: HC Series
Material(s): Zinc Plated Carbon Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applicable Specs & Approvals: MIL-Spec A-A-59553, ASTM A 27 Grade 1030
Minimum Clamp I.D.: 1.53125in
Maximum Clamp I.D.: 1.65625in

What are the Applications?

  • Applications include compressed air systems and pneumatic tools.
  • Designed for compressed air and water service only.
  • WARNING: Not for use in steam applications!

What are the Materials?

  • ASTM A27, Grade 1030 Zinc Plated Carbon Steel.
  • Complies with Mil-Spec A-A-59553.
  • Gasket: Buna-N.
Part Number Size Range
(in)		 Weight
Each
(lbs) 		Maximum Torque
(ft. lbs)
HC-38 11/16" - 3/4" 0.20 lbs 6 ft. lbs
HC-50 1" - 1-1/8" 0.32 lbs 6 ft. lbs
HC-75 1-1/8" - 1-5/16" 0.56 lbs 12 ft. lbs
HC-101 1-5/16" - 1-1/2" 1.05 lbs 21 ft. lbs
HC-100 1-17/32" - 1-21/32" 0.72 lbs 21 ft. lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
