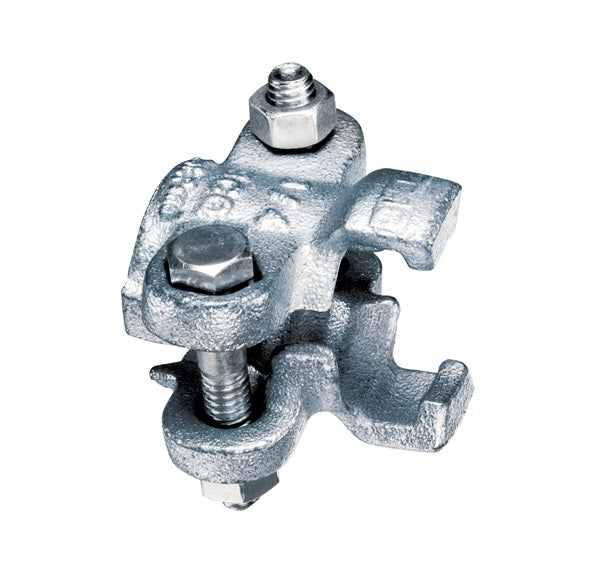

HC-101 by Kuriyama | HC Series | 2-Bolt Interlocking Hose Clamp | for Universal Air Hose Coupling | Fits: 1-5/16" to 1-1/2" Size Range | Zinc Plated Carbon Steel

Name: HC-101 by Kuriyama | HC Series | 2-Bolt Interlocking Hose Clamp | for Universal Air Hose Coupling | Fits: 1-5/16" to 1-1/2" Size Range | Zinc Plated Carbon Steel
Brand: Kuriyama
SKU: HC-101 Kuriyama
Price: 4.16 USD
Availability: InStock

Save $5.97

$10.13

$10.13 - $10.13

$10.13

$4.16

$4.16 - $4.16

$4.16

Kuriyama of America Inc.
HC Series | 2-Bolt Interlocking Hose Clamp for Universal Air Hose Coupling | Zinc Plated Carbon Steel

Applications include compressed air systems and pneumatic tools.

Designed for compressed air and water service only.

Specifications for Variant SKU: HC-101 Kuriyama
Series:	HC Series
Material(s):	Zinc Plated Carbon Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Applicable Specs & Approvals:	MIL-Spec A-A-59553, ASTM A 27 Grade 1030
Minimum Clamp I.D.:	1.3125in
Maximum Clamp I.D.:	1.5in

What are the Applications?

Applications include compressed air systems and pneumatic tools.
Designed for compressed air and water service only.
WARNING: Not for use in steam applications!

What are the Materials?

ASTM A27, Grade 1030 Zinc Plated Carbon Steel.
Complies with Mil-Spec A-A-59553.
Gasket: Buna-N.

Part Number	Size Range (in)	Weight Each (lbs)	Maximum Torque (ft. lbs)
HC-38	11/16" - 3/4"	0.20 lbs	6 ft. lbs
HC-50	1" - 1-1/8"	0.32 lbs	6 ft. lbs
HC-75	1-1/8" - 1-5/16"	0.56 lbs	12 ft. lbs
HC-101	1-5/16" - 1-1/2"	1.05 lbs	21 ft. lbs
HC-100	1-17/32" - 1-21/32"	0.72 lbs	21 ft. lbs
