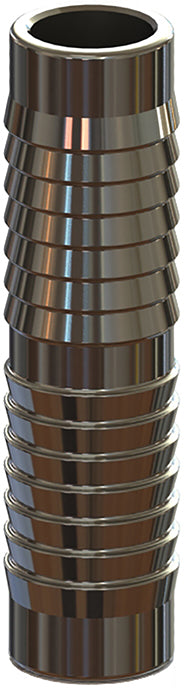

HCPS-5 by Campbell Fittings | Mender | 1-1/4" Hose Barb x 1-1/4" Hose Barb | Plated Steel

HCPS-5 by Campbell Fittings | Mender | 1-1/4" Hose Barb x 1-1/4" Hose Barb | Plated Steel

Save $6.60 Save $6.60
$16.50
$16.50 - $16.50
$16.50
$9.90
$9.90 - $9.90
$9.90

by Campbell
Combination Nipples & Menders:HCPS Expander Nipple
Specifications for Variant SKU: HCPS-5 Campbell Fittings
Series: HCPS Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in, 1-1/4in, Some Ends Match
Material(s): Plated Steel
Recommended Use:
  • Liquid, bulk handling, low pressure air
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation
Part Number Hose Size
HCPS-2 1/2"
HCPS-3 3/4"
HCPS-4 1"
HCPS-5 1-1/4"
HCPS-6 1-1/2"
HCPS-8 2"
HCPS-10 2-1/2"
HCPS-12 3"
HCPS-16 4"
HCPS-20 5"
HCPS-24 6"
HCPS-32 8"
HCPS-40 10"
HCPS-48 12"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
