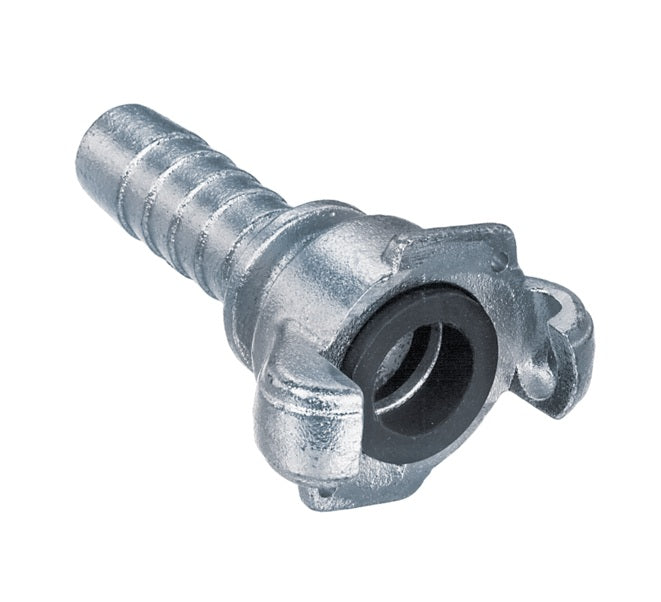

HE-150 by Kuriyama | HE Series | Universal Air Hose Coupling | Two Lug | 1-1/2" Hose ID | Zinc Plated Carbon Steel

Save $9.53

$23.44

$23.44 - $23.44

$23.44

$13.91

$13.91 - $13.91

$13.91

Kuriyama of America Inc.
HE Series | Universal Air Hose Coupling | Two Lug | Zinc Plated Carbon Steel

Applications include compressed air systems and pneumatic tools.

Designed for compressed air and water service only.

Specifications for Variant SKU: HE-150 Kuriyama
Series:	HE Series
Shape (Orientation):	Straight
Ends Configuration:	2-Lug Chicago, 1-1/2in Hose Barb
Material(s):	Zinc Plated Carbon Steel
Seal Material(s):	Rubber
Applicable Specs & Approvals:	MIL-Spec A-A-59553, ASTM A 27 Grade 1030

What are the Applications?

Applications include compressed air systems and pneumatic tools.
Designed for compressed air and water service only.
WARNING: Not for use in steam applications!

What are the Materials?

ASTM A27, Grade 1030 Zinc Plated Carbon Steel.
Complies with Mil-Spec A-A-59553.

Part Number	Hose ID Size (in)	Style	Gasket	PSI Rating at 70°F	Weight Each (lbs)
HE-38	3/8"	2 Lug	AHG-75	150 PSI	0.44 lbs
HE-50	1/2"	2 Lug	AHG-75	150 PSI	0.48 lbs
HE-75	3/4"	2 Lug	AHG-75	150 PSI	0.56 lbs
HE-100	1"	2 Lug	AHG-75	150 PSI	0.64 lbs
HE-125	1-1/4"	4 Lug	AHG-100	150 PSI	1.70 lbs
HE-150	1-1/2"	4 Lug	AHG-100	150 PSI	1.80 lbs
HE-200	2"	4 Lug	AHG-100	150 PSI	2.00 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
