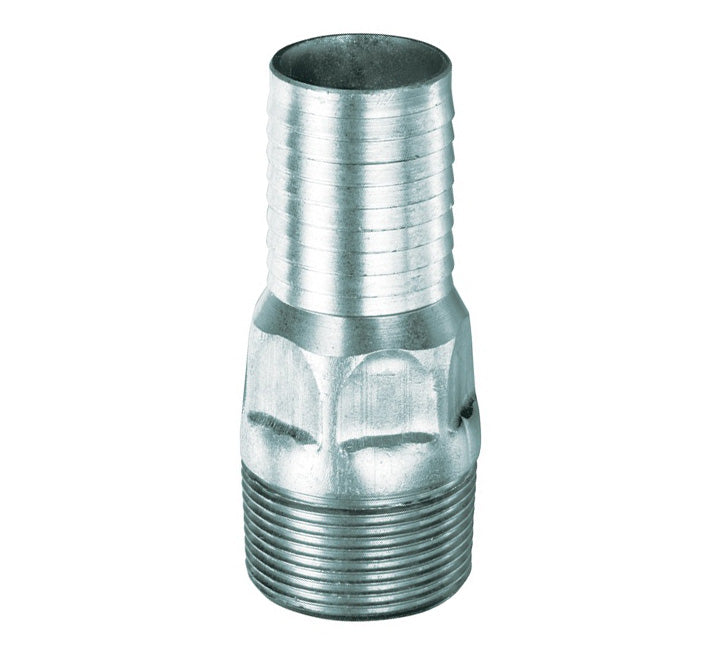

HEX-SPN125 by Kuriyama | HEX-SPN Series | Combination Hose Nipple with Hex | 1-1/4" Male NPT x 1-1/4" Hose Barb | Zinc Plated Steel

HEX-SPN125 by Kuriyama | HEX-SPN Series | Combination Hose Nipple with Hex | 1-1/4" Male NPT x 1-1/4" Hose Barb | Zinc Plated Steel

Save $5.67 Save $5.67
$9.50
$9.50 - $9.50
$9.50
$3.83
$3.83 - $3.83
$3.83

Kuriyama of America Inc.
Combination Hose Nipple with Hex | HEX-SPN Series | Male NPT x Hose Barb | Zinc Plated Steel

Versatile hose connectors designed to connect hose and pipes of the same thread size.

Hex design allows for tighterning with wrench.

Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
Specifications for Variant SKU: HEX-SPN125 Kuriyama
Series: HEX-SPN Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Male NPT, 1-1/4in Hose Barb
Material(s): Zinc Plated Steel
Applicable Specs & Approvals: ASTM A53 Grade B

What are the Features?

  • Versatile hose connectors designed to connect hose and pipes of the same thread size.
  • Hex design allows for tighterning with wrench.
  • Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
  • Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.

What are the Materials?

  • Plain Steel - Complies with ASTM A53 B welded pipe.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
HEX-SPN050 1/2" 125 PSI 0.14 lbs
HEX-SPN075 3/4" 125 PSI 0.22 lbs
HEX-SPN100 1" 125 PSI 0.32 lbs
HEX-SPN125 1-1/4" 125 PSI 0.56 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
