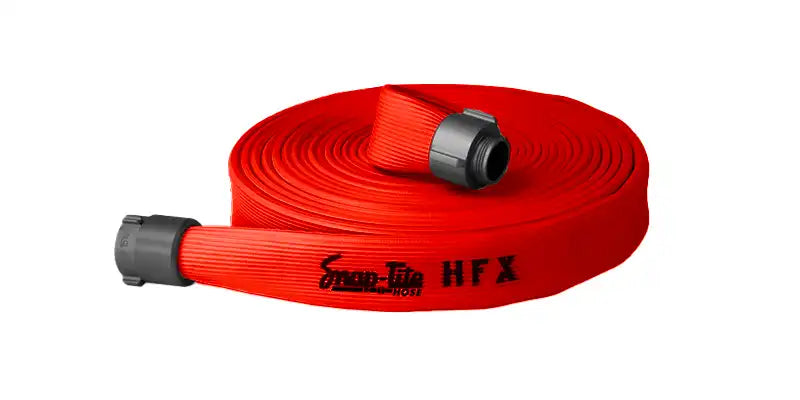

HFX15x50R15NBR by Snap-Tite | HFX Series | Nitrile Fire Hose Assembly with Polyester/Nylon Reinforcement | 1-1/2" Hose I.D. | 1-1/2" Male NH x 1-1/2" Female NH Rocker Lug Couplings | 300 PSI | Red | 50ft Length

Save $94.93

$332.26

$332.26 - $332.26

$332.26

$237.33

$237.33 - $237.33

$237.33

Snap-Tite Hose
HFX™ - EXTRUDED NITRILE RUBBER HOSE

This hose may take 1-2 weeks to ship.

Package Quantity: 50 FT

Specifications for Variant SKU: HFX15X50R15NBR Snap-Tite
Series:	HFX Series
Hose Color(s):	Red
Internal Diameter:	1-1/2in
Tubing Construction:	Polyester
Cover Construction:	Nitrile
Ends Configuration:	1-1/2in Male NH, 1-1/2in Female NH
Material(s):	Aluminum, Brass
Applicable Specs & Approvals:	UL/ULC Certified

Description:
Model:	HFX™
Basic Construction:	Nitrile rubber thru-the-weave with polyester and nylon reinforcing jacket
Application:	Attack, Supply, Soft Suction
Colors:	Yellow, Red
Temperature Range:	-40 ° F - 200 ° F
HFX™ is a nitrile thru-the-weave, rubber covered .re hose that utilizes polyester and nylon 6.6 yarn in the reinforcing jacket. Under pressure, the polyester keeps the hose from snaking, while the nylon allows for controlled dilation, reducing friction loss, and generating higher ow rates. Our special rubber compound provides a tough cover that resists heat, abrasion, snags, and hot embers. The interlocking matrix also means no adhesives are used and there is a permanent bond to all the warp and weft yarns. The Snap-tite HFX™ is highly resistant to both conductive and radiant heat.
Features:
Extruded thru-the-weave, nitrile rubber fire hose. The reinforcement is made with a blend of circular woven, twill weave, polyester, and nylon fibers. The ribs on the cover surface greatly increase abrasion resistance and help provide a long service life. Remains flexible at temperatures as low as -40 °F (-40 °C) and is resistant to ozone, oxidation, and most chemicals and petrochemicals. Suitable for attack, soft sleeve suction, and relay applications. Unique extruded nitrile rubber thru-the-weave construction provides a flexible, easy to maneuver hose that is easy to pack. Made in USA to ISO-9001:2015 certified quality assurance system.

YELLOW

Yellow
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Testing Pressures (PSI)			Weight (LBS/FT)	Abrasion Resistance
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Working	Proof	Burst	Uncoupled	# of Taber Abrasion Cycles (H-22 wheel)
1"	HFX10x25Y10N	HFX10x50Y10N	HFX10x100Y10N	Standard	300 psi	600 psi	900 psi	0.12	-
1-1/2"	HFX15x25Y15N	HFX15x50Y15N	HFX15x100Y15N	Standard	300 psi	600 psi	900 psi	0.30	11,000
1-1/2"	HFX15x25Y15NBR	HFX15x50Y15NBR	HFX15x100Y15NBR	Brass Rocker Lugs	300 psi	600 psi	900 psi	0.30	11,000
1-3/4"	HFX17x25Y15N	HFX17x50Y15N	HFX17x100Y15N	Standard	300 psi	600 psi	900 psi	0.36	24,800
1-3/4"	HFX17x25Y15NBR	HFX17x50Y15NBR	HFX17x100Y15NBR	Brass Rocker Lugs	300 psi	600 psi	900 psi	0.36	24,800
2"	HFX20x25Y15N	HFX20x50Y15N	HFX20x100Y15N	Standard	300 psi	600 psi	900 psi	0.40	8,500
2-1/2"	HFX25x25Y25N	HFX25x50Y25N	HFX25x100Y25N	Standard	300 psi	600 psi	900 psi	0.56	19,600
2-1/2"	HFX25x25Y25NBR	HFX25x50Y25NBR	HFX25x100Y25NBR	Brass Rocker Lugs	300 psi	600 psi	900 psi	0.56	19,600
3"	HFX30x25Y25N	HFX30x50Y25N	HFX30x100Y25N	Standard	300 psi	600 psi	900 psi	0.62	14,000
4"	HFX40x25Y40S	HFX40x50Y40S	HFX40x100Y40S	Standard	250 psi	500 psi	750 psi	0.78	23,500
5"	HFX50x25Y50S	HFX50x50Y50S	HFX50x100Y50S	Standard	225 psi	450 psi	675 psi	0.91	20,800

RED

Red
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Testing Pressures (PSI)			Weight (LBS/FT)	Abrasion Resistance
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Working	Proof	Burst	Uncoupled	# of Taber Abrasion Cycles (H-22 wheel)
1"	HFX10x25R10N	HFX10x50R10N	HFX10x100R10N	Standard	300 psi	600 psi	900 psi	0.12	-
1-1/2"	HFX15x25R15N	HFX15x50R15N	HFX15x100R15N	Standard	300 psi	600 psi	900 psi	0.30	11,000
1-1/2"	HFX15x25R15NBR	HFX15x50R15NBR	HFX15x100R15NBR	Brass Rocker Lugs	300 psi	600 psi	900 psi	0.30	11,000
1-3/4"	HFX17x25R15N	HFX17x50R15N	HFX17x100R15N	Standard	300 psi	600 psi	900 psi	0.36	24,800
1-3/4"	HFX17x25R15NBR	HFX17x50R15NBR	HFX17x100R15NBR	Brass Rocker Lugs	300 psi	600 psi	900 psi	0.36	24,800
2"	HFX20x25R15N	HFX20x50R15N	HFX20x100R15N	Standard	300 psi	600 psi	900 psi	0.40	8,500
2-1/2"	HFX25x25R25N	HFX25x50R25N	HFX25x100R25N	Standard	300 psi	600 psi	900 psi	0.56	19,600
2-1/2"	HFX25x25R25NBR	HFX25x50R25NBR	HFX25x100R25NBR	Brass Rocker Lugs	300 psi	600 psi	900 psi	0.56	19,600
3"	HFX30x25R25N	HFX30x50R25N	HFX30x100R25N	Standard	300 psi	600 psi	900 psi	0.62	14,000
4"	HFX40x25R40S	HFX40x50R40S	HFX40x100R40S	Standard	250 psi	500 psi	750 psi	0.78	23,500
5"	HFX50x25R50S	HFX50x50R50S	HFX50x100R50S	Standard	225 psi	450 psi	675 psi	0.91	20,800

*1-year warranty.

*1-1/2", 1-3/4", 2-1/2", 4", and 5" are UL/ULC Certified.

*2" ULC only.

*Potable water approved: No

*Quality Management System Certification: ISO 9001:2015 Registration # 11-R1045
