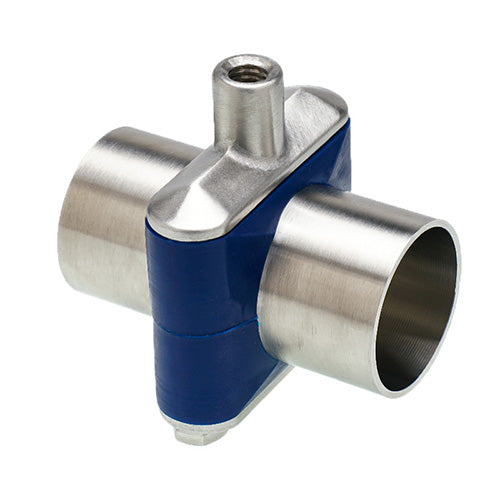

HM-050P-316ZP by ACL Hygienic | Zero Puddle Silicone Hang Mount w/ Tight Fit | 1/2" Pipe Size x 3/8" Thread Size | Blue | 316 Stainless Steel

HM-050P-316ZP by ACL Hygienic | Zero Puddle Silicone Hang Mount w/ Tight Fit | 1/2" Pipe Size x 3/8" Thread Size | Blue | 316 Stainless Steel

Save $3.23 Save $3.23
$29.07
$29.07 - $29.07
$29.07
$25.84
$25.84 - $25.84
$25.84

ACL Hygienic
Sanitary, Washdown, and Pipe Hanging Systems:Pipe Hanging Systems - Hang Mount
Specifications for Variant SKU: HM-050P-316ZP ZSi-Foster
Shape (Orientation): Straight
Material(s): Silicone, 316 Stainless Steel
Applications:
  • Cleanrooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing, beverage, dairy, cosmetic, chemical, water treatment, and semiconductor industries.
  • Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines, WFI, SIP, CIP, process, utilities & instrument lines
Sizes:
  • Support Range: 1/4" – 6" Tube and 1/2" – 6" Pipe for Copper and Conduits including PVC Coated Pipe
  • Tight fit Anchors and loose fit Guides are offered
Features:
  • Reduced OD allows hanger to be encased under the insulation’s jacket
  • ZERO PUDDLE Silicones inserts raised geometry facilitates drainage of liquids on vertical/riser lines creating maintenance uptime
  • There are no exposed threads or openings
Materials:
  • 304 and 316 stainless steels
  • ZERO PUDDLE inserts are FDA grade silicone rubber
Specifications:
  • Intermittent temperatures from -40F to 320F
  • Continues temperatures from -20F to 302F
Benefits:
  • Guides loose fit allow the line to freely expand and contract during thermal cycling, preventing undo stress to welds
  • Hanger’s threaded section is elongated, increasing the housing’s elevation adjustment aiding in slope alignment
  • Insulation Envelope “IE”: Reduced OD allows hanger to be buried under the insulation jacket
  • Insulation Thickness: Line’s ODs are Encased Under Insulation
    • 1.0” of insulation : 1/2” Tube (0.5”) to 3” Copper (3.125”)
    • 1.5” of insulation : 3” Pipe (3.5”) to 4” Pipe (4.50”)
    • 2.0” of insulation : 6” Tube (6.0”) to 6” Pipe (6.625”)
  • There are no exposed threads or openings in hardware plates
  • All plates are cleaned polished
  • Hanger threads match MSS 69 rod OD requirement
Hang Mount: FOR ATTACHMENT: Use Shielded Rod, solid rod with threaded end(s) or all thread rod
Part Number
(anchor/tight fit)		 Part Number
(guide/loose fit)		 Pipe Size Line OD H L W CL Thread
HM-025P-304ZP - 1/2" 0.25" 1.85" 1.93" 0.75" 1.32" 3/8-16"
HM-038P-304ZP - 3/8" 0.375" 2.07" 1.93" 0.75" 1.32" 3/8-16"
HM-050P-316ZP HM-050P-304ZPG 1/2" 0.50" 2.29" 1.93" 0.75" 1.55" 3/8"-16
HM-075P-304ZP HM-075P-304ZPG 3/4" 0.75" 2.29" 1.93" 0.75" 1.55" 3/8-16"
HM-100P-304ZP HM-100P-304ZPG 1" 1" 2.29" 1.93" 0.75" 1.55" 3/8-16"
HM-150P-304ZP HM-150P-304ZPG 1-1/2" 1.50" 2.79" 2.49" 0.75" 1.80" 3/8-16"
HM-200T-304SP HM-200P-304ZPG 2" 2" 3.29" 2.99" 0.88" 2.05" 3/8-16"
HM-250P-304ZP HM-250P-304ZPG 2-1/2" 2.50" 4.43" 3.36" 0.88" 2.09" 1/2-13"
HM-300P-304ZP HM-300P-304ZPG 3" 3" 5.18" 3.99" 0.88" 3.30" 1/2-13"
HM-400P-304ZP HM-400P-304ZPG 4" 4" 6.24" 5.10" 1" 4.05" 5/8-11"
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
