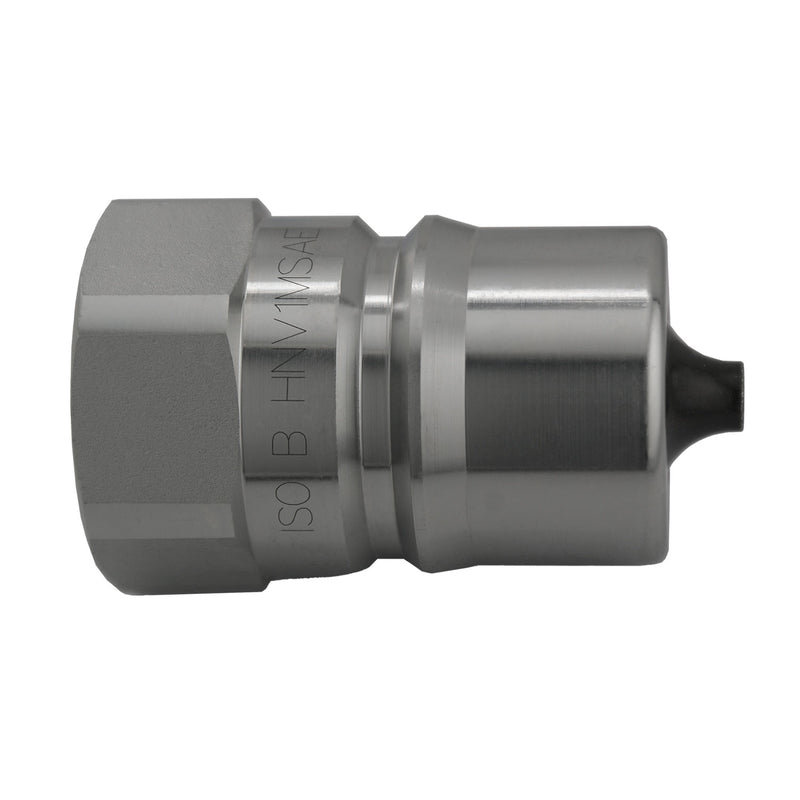

HNV1MSAE by Midland | Hydraulic Quick Disconnect | ISO-B Plug | 1" Body Size x 1" Female SAE O-Ring Boss | Steel

HNV1MSAE by Midland | Hydraulic Quick Disconnect | ISO-B Plug | 1" Body Size x 1" Female SAE O-Ring Boss | Steel

Save $6.77 Save $6.77
$16.93
$16.93 - $16.93
$16.93
$10.16
$10.16 - $10.16
$10.16

Midland Industries
Hydraulic Quick Disconnects: ISO-B Female SAE ORB Plug - Steel

Inventory @ Manufacturers Warehouse: 42 Units
Specifications for Variant SKU: HNV1MSAE Midland
Ends Configuration: 1in ISO-B QD Interchange, 1in Female O-Ring Boss
Material(s): Steel
Features:
  • Poppet valves to prevent uncoupled leakage.
  • Critical parts are induction hardened for durability.
  • Dependable ball-locking mechanism holds the maling halves together.
  • Socket and plug are precision machined from solid barstock.
  • Standard nitrile seals temp range -40°F to +250°F.
ISO 7241-1 Series B ISO-B Interchange ( Connected )
Body Size Steel Coupler/ Plug Brass Coupler/ Plug
Maximum Working Burst Maximum Working Burst
PSI Bar PSI Bar PSI Bar PSI Bar
1/4" 5,000 PSI 345 Bar 22,500 PSI 1,550 Bar 3,000 PSI 200 Bar 15,000 PSI 1,000 Bar
3/8" 4,000 PSI 275 Bar 16,500 PSI 1,150 Bar 2,500 PSI 175 Bar 12,000 PSI 800 Bar
1/2" 4,000 PSI 275 Bar 16,000 PSI 1,100 Bar 2,500 PSI 175 Bar 11,500 PSI 750 Bar
3/4" 4,000 PSI 275 Bar 16,500 PSI 1,150 Bar 2,000 PSI 150 Bar 12,000 PSI 800 Bar
1" 4,000 PSI 275 Bar 16,000 PSI 1,100 Bar 1,500 PSI 100 Bar 8,500 PSI 800 Bar
ISO-B SAE Female ORB Coupler
Part Number Body
Size		 Female
SAE O-Ring Boss		 Thread
HNV14FSAE 1/4" 1/4" 7/16-20
HNV38FSAE 3/8" 3/8" 9/16-18
HNV12FSAE 1/2" 1/2" 3/4-16
HNV34FSAE 3/4" 3/4" 1-1/16-12
HNV1FSAE 1" 1" 1-5/16-12
ISO-B SAE Female ORB Plug
Part Number Body
Size		 Female
SAE O-Ring Boss		 Thread
HNV14MSAE 1/4" 1/4" 7/16-20
HNV38MSAE 3/8" 3/8" 9/16-18
HNV12MSAE 1/2" 1/2" 3/4-16
HNV34MSAE 3/4" 3/4" 1-1/16-12
HNV1MSAE 1" 1" 1-5/16-12

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
