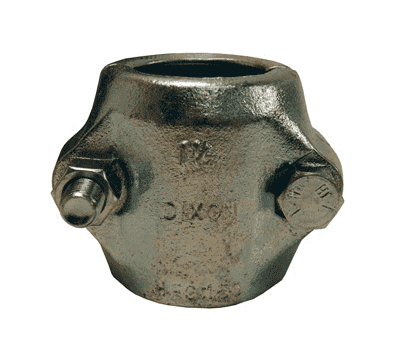

HRC-075 Dixon 3/4" Plated Iron Hydraulic Hose Coupling Clamp - Hose OD Range: 1-16/64" to 1-20/64"

HRC-075 Dixon Valve 3/4" Plated Iron Hydraulic Hose Coupling Clamp - Hose OD Range: 1-16/64" to 1-20/64"

Save $10.15 Save $10.15
$25.38
$25.38 - $25.38
$25.38
$15.23
$15.23 - $15.23
$15.23

Hydraulic Hose Couplings - Clamps for only 1 or 2 Wire Hydraulic Hoses - Plated Iron
Specifications for Variant SKU: HRC-075 Dixon
Material(s): Plated Iron
Minimum Clamp I.D.: 1.25
Maximum Clamp I.D.: 1.3125
Features:
  • For use only on 1 or 2 wire hydraulic hoses.
  • This clamp should not be used on 4 or 6 wire hydraulic hose even when hose falls within recommended ranges.
Part Number Hose ID Hose OD Range Torque in ft. lbs. Weight (Lbs.)
From: To:
HRC-037 3/8" 50/64" 52/64" 18 0.3410
HRC-050 1/2" 57/64" 1" 18 0.4400
HRC-075 3/4" 1-16/64" 1-20/64" 36 0.8050
HRC-100 1" 1-37/64" 1-41/64" 64 1.0800
HRC-125 1-1/4" 1-54/64" 1-62/64" 90 2.5600
HRC-150 1-1/2" 2-10/64" 2-18/64" 90 2.2750
HRC-200 2" 2-43/64" 2-52/64" 90 3.1400
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
