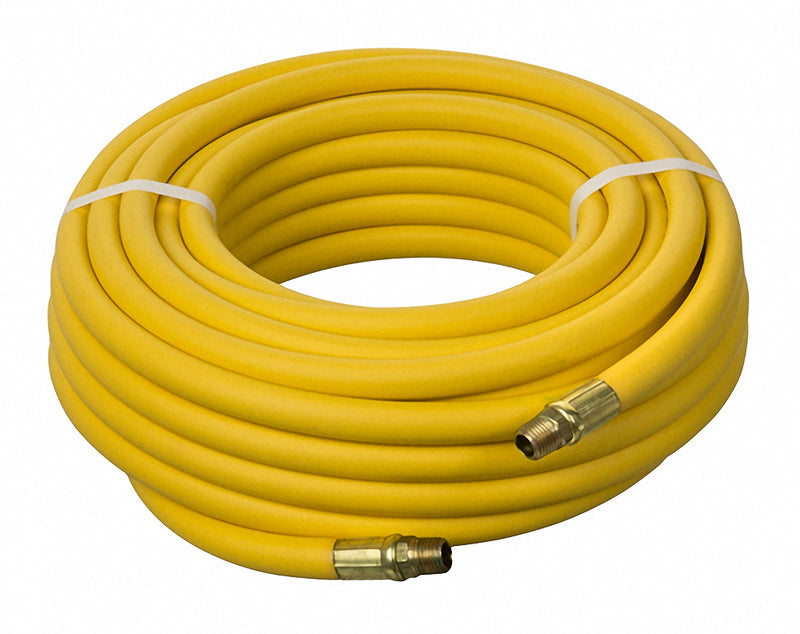

HS1171-04X50 Kuri-Tec by Kuriyama | HS1171 Series | General Service PVC Pneumatic Air Tool Hose Assembly | 1/4" ID | 1/4" x 1/4" Male NPT | Yellow | 50ft Length

Save $17.24

$45.07

$45.07 - $45.07

$45.07

$27.83

$27.83 - $27.83

$27.83

Kuri Tec® by Kuriyama
HS1171 Series | General Service PVC Pneumatic Air Tool Hose Assembly

Specifications for Variant SKU: HS1171-04X50 Kuriyama
Brand:	Kuri Tec
Series:	HS1171 Series
Hose Color(s):	Yellow
Internal Diameter:	0.25in - 1/4in
Outer Diameter:	0.475in
Tubing Construction:	PVC
Cover Construction:	PVC
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPT, 1/4in Male NPT
Material(s):	Brass

SPECIFICATIONS

Other Features:
Applications:	Pneumatic Air Tool Applications
Tube:	PVC	Reinforcement:	-
Cover:	PVC	Service Temperature Range:	-15°F (-26°C) to +150°F (+65°C)
Specifications:	Phthalate Free
Hose assemblies are furnished with brass fittings. Phthalate Free. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling.

HS1171 Series \| Yellow
Part Number 25ft	Part Number 50ft	Part Number 100ft	Nominal ID		Nominal OD		Max. Working Pressure		Fittings
Part Number 25ft	Part Number 50ft	Part Number 100ft	in	mm	in	mm	@70°F (20°C)	@122°F (50°C)	Fittings
HS1171-04X25	HS1171-04X50	HS1171-04X100	1/4"	6.5mm	0.475"	12.1mm	300 PSI	150 PSI	1/4" x 1/4" Male NPT
HS1171-06X25	HS1171-06X50	HS1171-06X100	3/8"	9.5mm	0.600"	15.2mm	300 PSI	150 PSI	3/8" x 1/4" Male NPT
HS1171-08X25	HS1171-08X50	HS1171-08X100	1/2"	12.7mm	0.750"	19.1mm	300 PSI	150 PSI	1/2" x 3/8" Male NPT

HS1174 Series \| Red
Part Number 25ft	Part Number 50ft	Part Number 100ft	Nominal ID		Nominal OD		Max. Working Pressure		Fittings
Part Number 25ft	Part Number 50ft	Part Number 100ft	in	mm	in	mm	@70°F (20°C)	@122°F (50°C)	Fittings
HS1174-04X25	HS1174-04X50	HS1174-04X100	1/4"	6.5mm	0.475"	12.1mm	300 PSI	150 PSI	1/4" x 1/4" Male NPT
HS1174-06X25	HS1174-06X50	HS1174-06X100	3/8"	9.5mm	0.600"	15.2mm	300 PSI	150 PSI	3/8" x 1/4" Male NPT
HS1174-08X25	HS1174-08X50	HS1174-08X100	1/2"	12.7mm	0.750"	19.1mm	300 PSI	150 PSI	1/2" x 3/8" Male NPT

HS1176 Series \| Blue
Part Number 25ft	Part Number 50ft	Part Number 100ft	Nominal ID		Nominal OD		Max. Working Pressure		Fittings
Part Number 25ft	Part Number 50ft	Part Number 100ft	in	mm	in	mm	@70°F (20°C)	@122°F (50°C)	Fittings
HS1176-04X25	HS1176-04X50	HS1176-04X100	1/4"	6.5mm	0.475"	12.1mm	300 PSI	150 PSI	1/4" x 1/4" Male NPT
HS1176-06X25	HS1176-06X50	HS1176-06X100	3/8"	9.5mm	0.600"	15.2mm	300 PSI	150 PSI	3/8" x 1/4" Male NPT
HS1176-08X25	HS1176-08X50	HS1176-08X100	1/2"	12.7mm	0.750"	19.1mm	300 PSI	150 PSI	1/2" x 3/8" Male NPT

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
