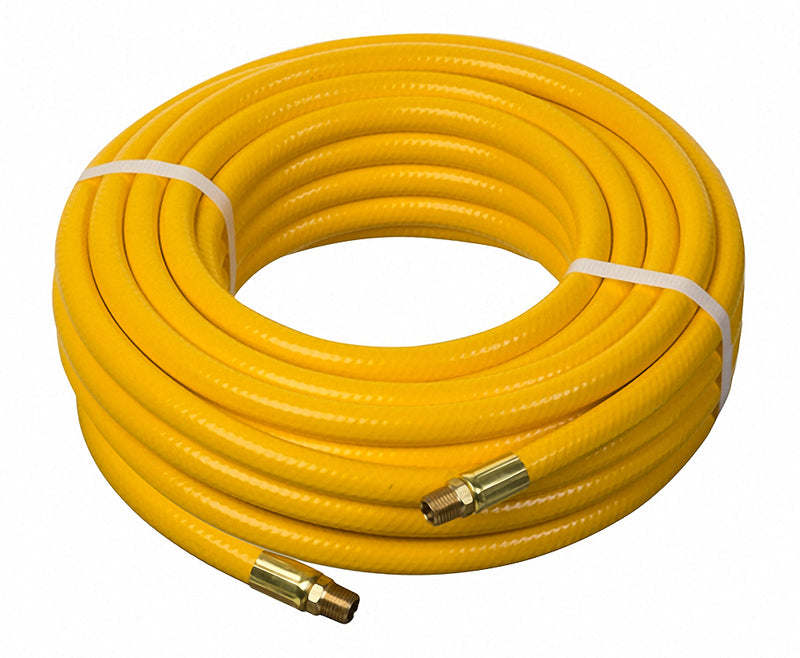

HS1181-04X25 Kuri-Tec by Kuriyama | HS1181 Series | Utility-Grade PVC Air Tool Hose Assembly | 1/4" ID | 1/4" x 1/4" Male NPT | Yellow | 25ft Length

HS1181-04X25 Kuri-Tec by Kuriyama | HS1181 Series | Utility-Grade PVC Air Tool Hose Assembly | 1/4" ID | 1/4" x 1/4" Male NPT | Yellow | 25ft Length

Save $13.90 Save $13.90
$24.81
$24.81 - $24.81
$24.81
$10.91
$10.91 - $10.91
$10.91

Kuri Tec® by Kuriyama
HS1181 Series | Utility-Grade PVC Air Tool Hose Assembly
Specifications for Variant SKU: HS1181-04X25 Kuriyama
Brand: Kuri Tec
Series: HS1181 Series
Hose Color(s): Yellow
Internal Diameter: 0.25in - 1/4in
Outer Diameter: 0.475in
Tubing Construction: PVC
Cover Construction: PVC
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/4in Male NPT
Material(s): Brass

SPECIFICATIONS

Applications: Air Tool Applications
Tube: PVC Reinforcement: -
Cover: PVC Service Temperature Range: +14°F (-10°C) to +150°F (+65°C)
Specifications: Phthalate Free
Other Features:
  • Hose assemblies are furnished with brass fittings.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
    		•
    HS1181 Series | Yellow
    Part Number
    25ft    		 Part Number
    50ft    		 Part Number
    100ft    		 Nominal ID Nominal OD Max. Working
    Pressure    		 Fittings
    in mm in mm @70°F
    (20°C)
    HS1181-04X25 HS1181-04X50 HS1181-04X100 1/4" 6.5mm 0.475" 12.1mm 300 PSI 1/4" x 1/4" Male NPT
    HS1181-06X25 HS1181-06X50 HS1181-06X100 3/8" 9.5mm 0.600" 15.2mm 300 PSI 3/8" x 1/4" Male NPT
    HS1184 Series | Red
    Part Number
    25ft    		 Part Number
    50ft    		 Part Number
    100ft    		 Nominal ID Nominal OD Max. Working
    Pressure    		 Fittings
    in mm in mm @70°F
    (20°C)
    HS1184-04X25 HS1184-04X50 HS1184-04X100 1/4" 6.5mm 0.475" 12.1mm 300 PSI 1/4" x 1/4" Male NPT
    HS1184-06X25 HS1184-06X50 HS1184-06X100 3/8" 9.5mm 0.600" 15.2mm 300 PSI 3/8" x 1/4" Male NPT
    HS1186 Series | Blue
    Part Number
    25ft    		 Part Number
    50ft    		 Part Number
    100ft    		 Nominal ID Nominal OD Max. Working
    Pressure    		 Fittings
    in mm in mm @70°F
    (20°C)
    HS1186-04X25 HS1186-04X50 HS1186-04X100 1/4" 6.5mm 0.475" 12.1mm 300 PSI 1/4" x 1/4" Male NPT
    HS1186-06X25 HS1186-06X50 HS1186-06X100 3/8" 9.5mm 0.600" 15.2mm 300 PSI 3/8" x 1/4" Male NPT

    Kuriyama

    Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
