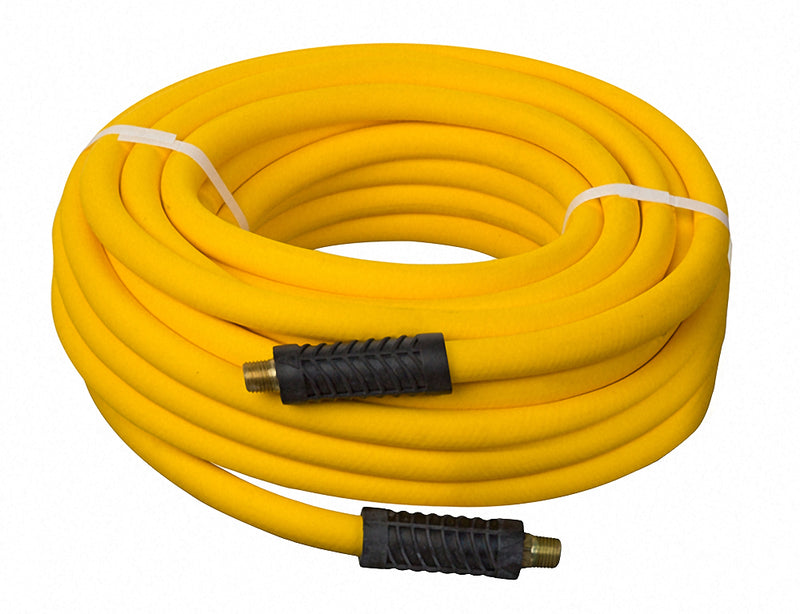

HS1231-04X25 Kuri-Tec by Kuriyama | TUNDRA-AIR® | HS1231 Series | High Grade Low Temperature Air Hose Assembly | 1/4" ID | 1/4" x 1/4" Male NPT | Yellow | 25ft Length

HS1231-04X25 Kuri-Tec by Kuriyama | TUNDRA-AIR® | HS1231 Series | High Grade Low Temperature Air Hose Assembly | 1/4" ID | 1/4" x 1/4" Male NPT | Yellow | 25ft Length

Save $14.44 Save $14.44
$35.28
$35.28 - $35.28
$35.28
$20.84
$20.84 - $20.84
$20.84

Kuri Tec® by Kuriyama
TUNDRA-AIR® | HS1231 Series | High Grade Low Temperature Air Hose Assembly
Specifications for Variant SKU: HS1231-04X25 Kuriyama
Brand: TUNDRA-AIR, Kuri Tec
Series: HS1231 Series
Hose Color(s): Yellow
Internal Diameter: 0.25in - 1/4in
Outer Diameter: 0.500in
Tubing Construction: Polyurethane
Cover Construction: Polyurethane
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/4in Male NPT, Some Ends Match
Material(s): Brass

SPECIFICATIONS

Applications: Pneumatic Air Lines
Water Transfer
Tube: Polyurethane. Reinforcement: -
Cover: Polyurethane. Service Temperature Range: -65°F (-54°C) to +150°F (+65°C)
Specifications: Phthalate Free
Other Features:
  • 1/4" and 3/8" Hoses include Rubber Bend Restrictors.
  • Hose assemblies are furnished with the following brass fittings:
    • 1/4" ID - 1/4" x 1/4" Male NPT
    • 3/8" ID - 3/8" x 1/4" Male NPT
    • 1/2" ID - 1/2" x 3/8" Male NPT
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
HS1231 Series | Yellow
Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
HS1231-04X25 HS1231-04X50 HS1231-04X100 1/4" 6.5mm 0.500" 12.7mm 300 PSI 160 PSI
HS1231-06X25 HS1231-06X50 HS1231-06X100 3/8" 9.5mm 0.625" 15.9mm 300 PSI 160 PSI
HS1231-08X25 HS1231-08X50 HS1231-08X100 1/2" 12.7mm 0.781" 19.8mm 300 PSI 160 PSI
HS1234 Series | Red
Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
HS1234-04X25 HS1234-04X50 HS1234-04X100 1/4" 6.5mm 0.500" 12.7mm 300 PSI 160 PSI
HS1234-06X25 HS1234-06X50 HS1234-06X100 3/8" 9.5mm 0.625" 15.9mm 300 PSI 160 PSI
HS1234-08X25 HS1234-08X50 HS1234-08X100 1/2" 12.7mm 0.781" 19.8mm 300 PSI 160 PSI
HS1236 Series | Blue
Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
HS1236-04X25 HS1236-04X50 HS1236-04X100 1/4" 6.5mm 0.500" 12.7mm 300 PSI 160 PSI
HS1236-06X25 HS1236-06X50 HS1236-06X100 3/8" 9.5mm 0.625" 15.9mm 300 PSI 160 PSI
HS1236-08X25 HS1236-08X50 HS1236-08X100 1/2" 12.7mm 0.781" 19.8mm 300 PSI 160 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
