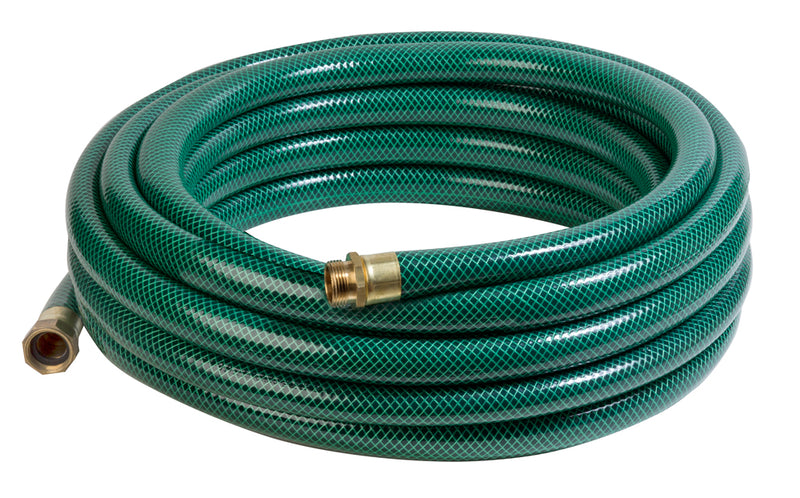

HS1317-12X100 Kuri-Tec by Kuriyama | HS1317 Series | Heavy Duty Reinforced PVC Water Hose Assembly | 3/4" ID | 3/4" Male GHT x 3/4" Female GHT | Green | 100ft Length

Save $51.23

$212.29

$212.29 - $212.29

$212.29

$161.06

$161.06 - $161.06

$161.06

Kuri Tec® by Kuriyama
HS1317 Series | Heavy Duty Reinforced Green PVC Water Hose Assembly

Specifications for Variant SKU: HS1317-12X100 Kuriyama
Brand:	Kuri Tec
Series:	HS1317 Series
Hose Color(s):	Green
Internal Diameter:	0.75in - 3/4in
Outer Diameter:	1.025in
Tubing Construction:	PVC
Cover Construction:	PVC
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male GHT, 3/4in Female GHT
Material(s):	Brass

SPECIFICATIONS

Other Features:
Applications:	Water Applications
Tube:	PVC	Reinforcement:	-
Cover:	Green PVC	Service Temperature Range:	+25°F (-4°C) to +150°F (+65°C)
Specifications:	Phthalate Free
Hose assemblies are furnished with heavy-duty brass fittings. Phthalate Free. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Part Number 50ft	Part Number 100ft	Nominal ID		Nominal OD		Max. Working Pressure		Fittings
Part Number 50ft	Part Number 100ft	in	mm	in	mm	@70°F (20°C)	@ 122°F (50°C)	Fittings
HS1317-12X50	HS1317-12X100	3/4"	19.1mm	1.025"	26.0mm	125 PSI	50 PSI	3/4" Male GHT x 3/4" Female GHT
HS1317-16X50	HS1317-16X100	1"	25.4mm	1.297"	32.9mm	125 PSI	50 PSI	1" Male NPS x 1" Female NPS

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
