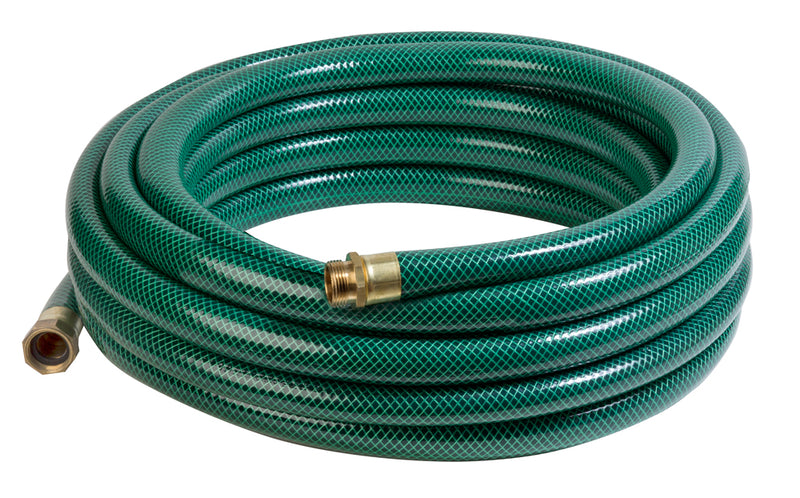

HS1317-16X50 Kuri-Tec by Kuriyama | HS1317 Series | Heavy Duty Reinforced PVC Water Hose Assembly | 1" ID | 1" Male NPS x 1" Female NPS | Green | 50ft Length

HS1317-16X50 Kuri-Tec by Kuriyama | HS1317 Series | Heavy Duty Reinforced PVC Water Hose Assembly | 1" ID | 1" Male NPS x 1" Female NPS | Green | 50ft Length

Save $43.40 Save $43.40
$172.50
$172.50 - $172.50
$172.50
$129.10
$129.10 - $129.10
$129.10

Kuri Tec® by Kuriyama
HS1317 Series | Heavy Duty Reinforced Green PVC Water Hose Assembly
Specifications for Variant SKU: HS1317-16X50 Kuriyama
Brand: Kuri Tec
Series: HS1317 Series
Hose Color(s): Green
Internal Diameter: 1in
Outer Diameter: 1.297in
Tubing Construction: PVC
Cover Construction: PVC
Shape (Orientation): Straight
Ends Configuration: 1in Male NPS, 1in Female NPS
Material(s): Brass

SPECIFICATIONS

Applications: Water Applications
Tube: PVC Reinforcement: -
Cover: Green PVC Service Temperature Range: +25°F (-4°C) to +150°F (+65°C)
Specifications: Phthalate Free
Other Features:
  • Hose assemblies are furnished with heavy-duty brass fittings.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Part Number
50ft		 Part Number
100ft		 Nominal ID Nominal OD Max. Working
Pressure		 Fittings
in mm in mm @70°F
(20°C)		 @ 122°F
(50°C)
HS1317-12X50 HS1317-12X100 3/4" 19.1mm 1.025" 26.0mm 125 PSI 50 PSI 3/4" Male GHT x 3/4" Female GHT
HS1317-16X50 HS1317-16X100 1" 25.4mm 1.297" 32.9mm 125 PSI 50 PSI 1" Male NPS x 1" Female NPS

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
