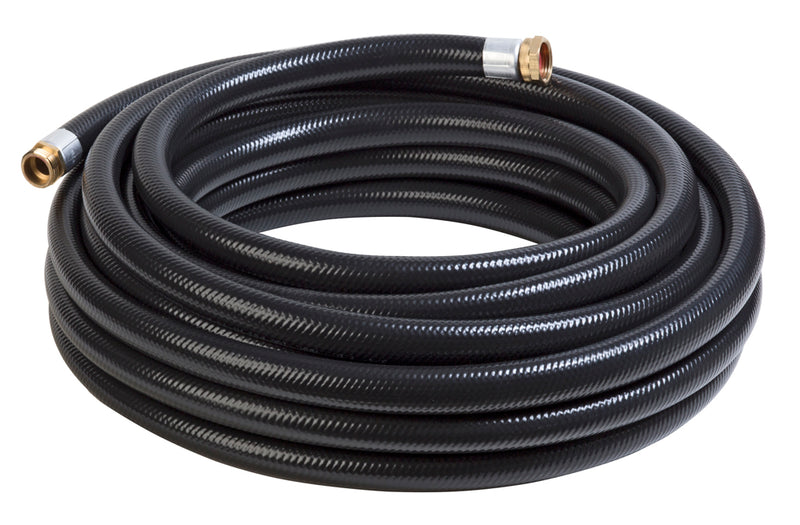

HS2163HDW-12X50 Kuri-Tec by Kuriyama | HS2163HDW Series | Black Contractors PVC Water Hose Assembly | 3/4" ID | 3/4" Male GHT x 3/4" Female GHT | 50ft Length

HS2163HDW-12X50 Kuri-Tec by Kuriyama | HS2163HDW Series | Black Contractors PVC Water Hose Assembly | 3/4" ID | 3/4" Male GHT x 3/4" Female GHT | 50ft Length

Save $35.41 Save $35.41
$91.16
$91.16 - $91.16
$91.16
$55.75
$55.75 - $55.75
$55.75

Kuri Tec® by Kuriyama
HS2163HDW Series | Black Contractors PVC Water Hose Assembly
Specifications for Variant SKU: HS2163HDW-12X50 Kuriyama
Brand: Kuri Tec
Series: HS2163HDW Series
Hose Color(s): Black
Internal Diameter: 0.75in - 3/4in
Outer Diameter: 1.030in
Tubing Construction: PVC
Cover Construction: PVC
Shape (Orientation): Straight
Ends Configuration: 3/4in Male GHT, 3/4in Female GHT
Material(s): Brass

SPECIFICATIONS

Applications: Water Applications
Tube: PVC Reinforcement: -
Cover: Black PVC Service Temperature Range: +25°F (-4°C) to +150°F (+65°C)
Specifications: Phthalate Free
Other Features:
  • Hose assemblies are furnished with heavy-duty brass fittings.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Part Number
50ft		 Nominal ID Nominal OD Max. Working
Pressure		 Fittings
in mm in mm @70°F
(20°C)		 @ 122°F
(50°C)
HS2163HDW-12X50 3/4" 19.1mm 1.030" 26.2mm 150 PSI 75 PSI 3/4" Male GHT x 3/4" Female GHT

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
