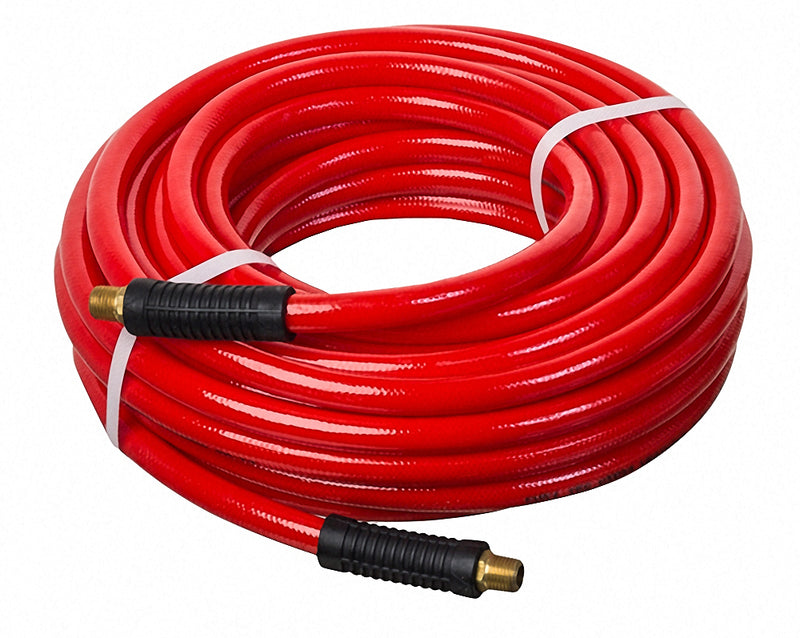

HS5094-04X25 Kuri-Tec by Kuriyama | PNEU-THANE™ | HS5094 Series | Reinforced Polyurethane Pneumatic Air Tool Hose Assembly | 1/4" ID | 1/4" x 1/4" Male NPT | Red | 25ft Length

HS5094-04X25 Kuri-Tec by Kuriyama | PNEU-THANE™ | HS5094 Series | Reinforced Polyurethane Pneumatic Air Tool Hose Assembly | 1/4" ID | 1/4" x 1/4" Male NPT | Red | 25ft Length

Save $18.19 Save $18.19
$53.99
$53.99 - $53.99
$53.99
$35.80
$35.80 - $35.80
$35.80

Kuri Tec® by Kuriyama
PNEU-THANE™ | HS5094 Series | Lightweight Reinforced Polyurethane Pneumatic Air Tool Hose Assembly
Specifications for Variant SKU: HS5094-04X25 Kuriyama
Brand: PNEU-THANE, Kuri Tec
Series: HS5094 Series
Hose Color(s): Red
Internal Diameter: 0.25in - 1/4in
Outer Diameter: 0.395in
Tubing Construction: Polyurethane
Cover Construction: Polyurethane
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/4in Male NPT, Some Ends Match
Material(s): Brass

SPECIFICATIONS

Applications: Pneumatic Air Tool.
Tube: Polyurethane. Reinforcement: -
Cover: Polyurethane. Service Temperature Range: -40°F (-40°C) to +185°F (+85°C)
Specifications: Phthalate Free
Other Features:
  • Hoses include Rubber Bend Restrictors.
  • Hose assemblies are furnished with the following brass fittings:
    • 1/4" ID - 1/4" x 1/4" Male NPT
    • 3/8" ID - 3/8" x 1/4" Male NPT.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
HS5090 Series | Aqua
Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
HS5090-04X25 HS5090-04X50 HS5090-04X100 1/4" 6.5mm 0.395" 10.0mm 250 PSI 200 PSI
HS5090-06X25 HS5090-06X50 HS5090-06X100 3/8" 9.5mm 0.560" 14.2mm 250 PSI 200 PSI
HS5094 Series | Red
Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
HS5094-04X25 HS5090-04X50 HS5094-04X100 1/4" 6.5mm 0.395" 10.0mm 250 PSI 200 PSI
HS5094-06X25 HS5094-06X50 HS5094-06X100 3/8" 9.5mm 0.560" 14.2mm 250 PSI 200 PSI
HS5096 Series | Blue
Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
HS5096-04X25 HS5096-04X50 HS5096-04X100 1/4" 6.5mm 0.395" 10.0mm 250 PSI 200 PSI
HS5096-06X25 HS5096-06X50 HS5096-06X100 3/8" 9.5mm 0.560" 14.2mm 250 PSI 200 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
