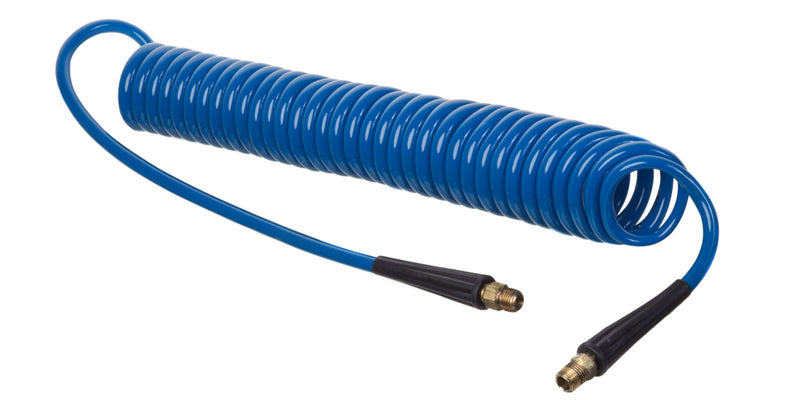

HSC2846-04X30 Kuri-Tec by Kuriyama | HSC2846 Series | Self-Store Coiled Tubing Assembly for Air Tool Service | Ether-Based Polyurethane | 1/4" ID | .375" OD | 1/4" x 1/4" Male NPT | Blue | 30ft Length

HSC2846-04X30 Kuri-Tec by Kuriyama | HSC2846 Series | Self-Store Coiled Tubing Assembly for Air Tool Service | Ether-Based Polyurethane | 1/4" ID | .375" OD | 1/4" x 1/4" Male NPT | Blue | 30ft Length

Save $27.10 Save $27.10
$70.01
$70.01 - $70.01
$70.01
$42.91
$42.91 - $42.91
$42.91

Kuri Tec® by Kuriyama
HSC2846 Series | Self-Store Coiled Tubing Assembly for Air Tool Service (Ether-Based Polyurethane)

Permanent crimped male swivel brass fittings provide greater strength and pull-out resistance. Rubber bend restrictors over fittings prevents scratches and scuffs.
Specifications for Variant SKU: HSC2846-04X30 Kuriyama
Brand: Kuri Tec
Series: HSC2846 Series
Hose Color(s): Blue
Internal Diameter: 0.25in - 1/4in
Outer Diameter: 0.375in
Tubing Construction: Polyurethane
Cover Construction: Polyurethane
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/4in Male NPT, Some Ends Match
Material(s): Brass

SPECIFICATIONS

Applications: Air Tool Service.
Note: Not recommended for transfer of brake fluids.
Tube: Ether-Based Polyurethane. Reinforcement: -
Cover: Ether-Based Polyurethane Service Temperature Range: -40°F (-40°C) to +175°F (+80°C)
Specifications: Phthalate Free
Other Features:
  • Standard assemblies have 4" pigtail and 20" whip end.
  • Permanent crimped male swivel brass fittings provide greater strength and pull-out resistance.
  • Rubber bend restrictors over fittings prevents scratches and scuffs.
  • Hose assemblies are furnished with the following fittings:
    • 1/4" ID - 1/4" x 1/4" Male NPT
    • 3/8" ID - 3/8" x 1/4" Male NPT
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
HSC2846 Series | Blue
Part Number Nominal ID Nominal OD Max. Working
Pressure		 Length Working
Length		 Coil OD
in mm in mm @70°F
(20°C)		 @122°F
(50°C)		 ft. ft. in
HSC2846-04X10 1/4" 6.5mm 0.375" 9.5mm 125 PSI 75 PSI 10 ft. 8 ft. 2"
HSC2846-04X15 1/4" 6.5mm 0.375" 9.5mm 125 PSI 75 PSI 15 ft. 12 ft. 2"
HSC2846-04X20 1/4" 6.5mm 0.375" 9.5mm 125 PSI 75 PSI 20 ft. 16 ft. 2"
HSC2846-04X25 1/4" 6.5mm 0.375" 9.5mm 125 PSI 75 PSI 25 ft. 20 ft. 2"
HSC2846-04X30 1/4" 6.5mm 0.375" 9.5mm 125 PSI 75 PSI 30 ft. 24 ft. 2"
HSC2846-04X50 1/4" 6.5mm 0.375" 9.5mm 125 PSI 75 PSI 50 ft. 40 ft. 2"
HSC2846-06X10 3/8" 9.5mm 0.570" 14.5mm 125 PSI 75 PSI 10 ft. 8 ft. 3"
HSC2846-06X15 3/8" 9.5mm 0.570" 14.5mm 125 PSI 75 PSI 15 ft. 12 ft. 3"
HSC2846-06X20 3/8" 9.5mm 0.570" 14.5mm 125 PSI 75 PSI 20 ft. 16 ft. 3"
HSC2846-06X25 3/8" 9.5mm 0.570" 14.5mm 125 PSI 75 PSI 25 ft. 20 ft. 3"
HSC2846-06X30 3/8" 9.5mm 0.570" 14.5mm 125 PSI 75 PSI 30 ft. 24 ft. 3"
HSC2846-06X50 3/8" 9.5mm 0.570" 14.5mm 125 PSI 75 PSI 50 ft. 40 ft. 3"

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
