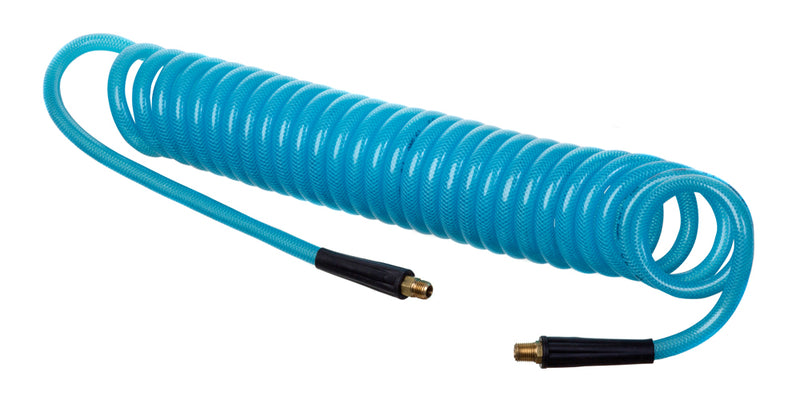

HSC2960-04X50 Kuri-Tec by Kuriyama | HSC2960 Series | Polyurethane Self-Store Reinforced Hose Assembly | 1/4" ID | .395" OD | 1/4" x 1/4" Male NPT | Aqua Tint | 50ft Length

HSC2960-04X50 Kuri-Tec by Kuriyama | HSC2960 Series | Polyurethane Self-Store Reinforced Hose Assembly | 1/4" ID | .395" OD | 1/4" x 1/4" Male NPT | Aqua Tint | 50ft Length

Save $22.22 Save $22.22
$111.78
$111.78 - $111.78
$111.78
$89.56
$89.56 - $89.56
$89.56

Kuri Tec® by Kuriyama
HSC2960 Series | Polyurethane Self-Store Reinforced Hose Assembly
Specifications for Variant SKU: HSC2960-04X50 Kuriyama
Brand: Kuri Tec
Series: HSC2960 Series
Hose Color(s): Aqua
Internal Diameter: 0.25in - 1/4in
Outer Diameter: 0.395in
Tubing Construction: Polyurethane
Cover Construction: Polyurethane
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/4in Male NPT, Some Ends Match
Material(s): Brass

SPECIFICATIONS

Applications: General Purpose Air & Water.
Tube: Polyurethane. Reinforcement: -
Cover: Polyurethane. Service Temperature Range: -40°F (-40°C) to +185°F (+85°C)
Specifications: Phthalate Free
Other Features:
  • Each length of assembled tubing or hose includes a 4" pigtail and a 20" whip end.
  • Permanent crimped swivel brass fittings with rubber bend restrictors.
  • Working length is 80% of nominal length shown.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
HSC2960 Series | Aqua Tint
Part Number Nominal ID Nominal OD Max. Working
Pressure		 Length Working
Length		 Coil OD
in mm in mm @70°F
(20°C)		 @122°F
(50°C)		 ft. ft. in
HSC2960-04X15 1/4" 6.5mm 0.395" 9.5mm 225 125 15 ft. 12 ft. 2"
HSC2960-04X25 1/4" 6.5mm 0.395" 9.5mm 225 125 25 ft. 20 ft. 2"
HSC2960-04X50 1/4" 6.5mm 0.395" 9.5mm 225 125 50 ft. 40 ft. 2"
HSC2960-06X15 3/8" 9.5mm 0.570" 14.5mm 225 125 15 ft. 12 ft. 3"
HSC2960-06X25 3/8" 9.5mm 0.570" 14.5mm 225 125 25 ft. 20 ft. 3"
HSC2960-06X50 3/8" 9.5mm 0.570" 14.5mm 225 125 50 ft. 40 ft. 3"

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
