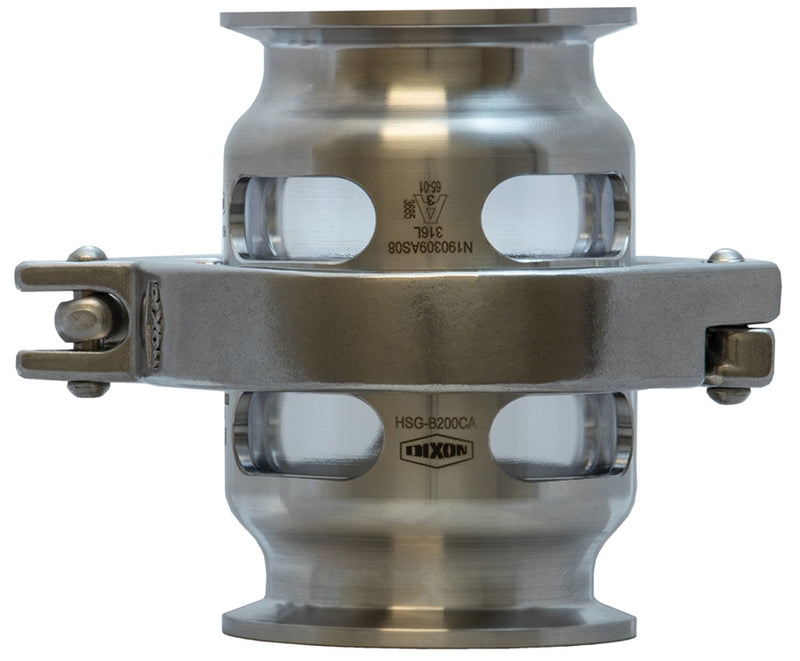

HSGE600CCA Dixon Valve HSG Sight Glass - 6" Single Pin Clamp Style - EPDM Gasket - 316L Stainless Steel

Save $162.47 Save $162.47
Original price $1,462.25
Original price $1,462.25 - Original price $1,462.25
Original price $1,462.25
Current price $1,299.78
$1,299.78 - $1,299.78
Current price $1,299.78

Dixon Sanitary Fittings HSG Sight Glass - Single Pin Clamp Style - EPDM Gasket - 316L Stainless Steel

Used widely in the food, dairy, and beverage sanitary processes to view fluids.

Can be used in industrial applications when you want to CIP and require 316L stainless steel construction.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: HSGE600CCA Dixon
Features:
  • Easy assembly and disassembly
  • Clamp connection standard
  • Higher pressure range than other sight glasses
  • Rubber seals are I-line gasket
  • Clamp protects glass from getting damaged
  • Patent pending assembly design
Construction:
  • Body: 316L stainless steel
  • Sight glass: Polycarbonate
  • Gaskets: EPDM (EPDM supplied with single pin clamp)
  • 3A Certified for CIP
Part Number Tube OD Max. Operating Pressure
HSGE100CCA 1" 500 PSI @ 70°F
300 PSI @ 200°F
HSGE150CCA 1-1/2" 450 PSI @ 70°F
250 PSI @ 200°F
HSGE200CCA 2" 400 PSI @ 70°F
200 PSI @ 200°F
HSGE250CCA 2-1/2" 350 PSI @ 70°F
175 PSI @ 200°F
HSGE300CCA 3" 250 PSI @ 70°F
125 PSI @ 200°F
HSGE400CCA 4" 80 PSI @ 70°F
40 PSI @ 200°F
HSGE600CCA 6" 50 PSI @ 70°F
25 PSI @ 200°F
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
