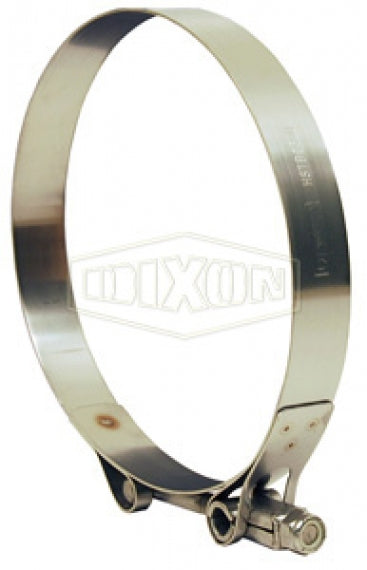

HSTBC900 by Dixon Valve | Style HSTBC | Heavy Duty T-Bolt Clamp | 7/8" Band Width | Hose OD Range: from 8.766" to 9.062" | SAE 300 Stainless Steel Band & bolt

HSTBC900 by Dixon Valve | Style HSTBC | Heavy Duty T-Bolt Clamp | 7/8" Band Width | Hose OD Range: from 8.766" to 9.062" | 300 Stainless Steel Band & Bolt

Save $14.86 Save $14.86
$37.15
$37.15 - $37.15
$37.15
$22.29
$22.29 - $22.29
$22.29

Dixon Valve
Heavy Duty T-Bolt Clamps | Style HSTBC
Specifications for Variant SKU: HSTBC900 Dixon
Series: Style HSTBC
Material(s): Stainless Steel, Stainless Steel
Clamp Thickness: 0.04
Clamp Width: 0.875
Minimum Clamp I.D.: 8.766
Maximum Clamp I.D.: 9.062
Features:
  • Can be applied with a standard 1/2" socket wrench.
  • Not for use with pneumatic tools.
Sizes:
  • 7/8" wide, .040" thick
Materials:
  • Style HTBC
    • 300-series stainless steel band.
    • Carbon Steel Bolt, torque rating: 150 in/lbs.
  • Style HSTBC
    • 300-series stainless steel band.
    • Stainless Steel Bolt, torque rating: 150 in. lbs.
Style HTBC
Part Number		 Style HSTBC
Part Number		 Band Width Hose OD
From To
HTBC238 HSTBC238 7/8" 2.125" 2.4375"
HTBC250 HSTBC250 7/8" 2.250" 2.5625"
HTBC300 HSTBC300 7/8" 2.750" 3.0625"
HTBC350 HSTBC350 7/8" 3.250" 3.5625"
HTBC400 HSTBC400 7/8" 3.750" 4.0625"
HTBC450 HSTBC450 7/8" 4.250" 4.5625"
HTBC500 HSTBC500 7/8" 4.750" 5.0625"
HTBC550 HSTBC550 7/8" 5.250" 5.5625"
HTBC600 HSTBC600 7/8" 5.750" 6.0625"
HTBC650 HSTBC650 7/8" 6.250" 6.5625"
HTBC700 HSTBC700 7/8" 6.750" 7.0625"
HTBC750 HSTBC750 7/8" 7.250" 7.5625"
HTBC800 HSTBC800 7/8" 7.750" 8.0625"
- HSTBC850 7/8" 8.266" 8.562"
- HSTBC888 7/8" 8.646" 8.942"
- HSTBC900 7/8" 8.766" 9.062"
- HSTBC950 7/8" 9.266" 9.562"
- HSTBC1000 7/8" 9.766" 10.062"
- HSTBC1088 7/8" 10.646" 10.942"
- HSTBC1288 7/8" 12.646" 12.942"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
