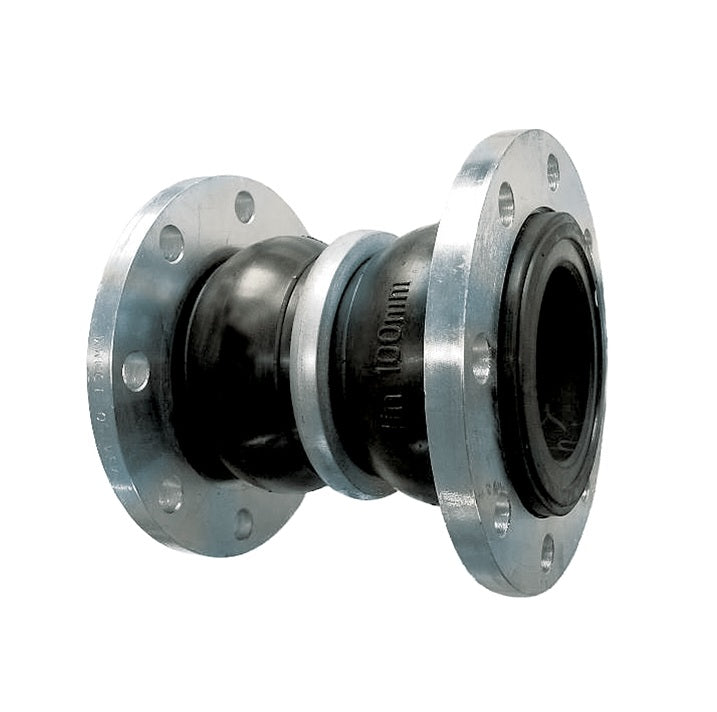

HTDRF100X13 by Kuriyama | HTDRF Series | Double Sphere Rubber Expansion Joint | Flange Ends | 10" Size | 13" Length | Carbon Steel / Nylon
HTDRF100X13 by Kuriyama | HTDRF Series | Double Sphere Rubber Expansion Joint | Flange Ends | 10" Size | 13" Length | Carbon Steel / Nylon
HTDRF100X13 by Kuriyama | HTDRF Series | Double Sphere Rubber Expansion Joint | Flange Ends | 10" Size | 13" Length | Carbon Steel / Nylon

HTDRF100X13 by Kuriyama | HTDRF Series | Double Sphere Rubber Expansion Joint | Flange Ends | 10" Size | 13" Length | Carbon Steel / Nylon

Save $290.71 Save $290.71
$1,351.74
$1,351.74 - $1,351.74
$1,351.74
$1,061.03
$1,061.03 - $1,061.03
$1,061.03

Kuriyama of America Inc.
HTDRF Series | Double Sphere Rubber Expansion Joints | Flange Ends

Excellent for use with moderate chemicals, most oils, fats, grease, and many solvents.

Allows for four-way movement.
Specifications for Variant SKU: HTDRF100X13 Kuriyama
Series: HTDRF Series
Shape (Orientation): Straight
Ends Configuration: 10in 150# Flange, 10in 150# Flange, Some Ends Match
Material(s): Carbon Steel, Nylon
Applicable Specs & Approvals: ANSI B16.56, ASTM A105

What are the Applications?

  • Excellent for use with moderate chemicals, most oils, fats, grease, and many solvents.
  • NOTE: Not for use with oxidizing acids, esters, and keytones.

What are the Features?

  • Excellent ability to absorb vibration and sound.
  • Allows for four-way movement.
  • Withstands high pressure.
  • Easy installation using either floating flanges or threaded unions.
  • Excellent for use with moderate chemicals, most oils, fats, grease, and many solvents.
  • A retention ring is supplied with all double sphere flanged expansion joints.

What are the Materials?

  • Nylon fabric-reinforced neoprene body.
  • HTSRF and HTDRF series supplied with forged carbon steel flanges.
  • HTDRU supplied with ductile iron plated pipe unions.
  • Flanges meet ANSI B16.56 and ASTM A-105 specifications.
Part Number Size
(in)		 Length
(L - in)		 Allowable Movement Operating Conditions
Axial
Compression
(in)		 Axial
Elongation
(in)		 Transverse
Deflection
(in)		 Angular
Deflection
(Degrees)		 Max.
Pressure
(psi)		 Max.
Temp.
(°F)		 Vacuum
(hg)		 Weight
Each
(lbs)
HTDRF12x7 1-1/4" 7" 2" 1-1/4" 1-1/2" 40° 150 PSI 220°F 16 hg 5.30 lbs
HTDRF15x7 1-1/2" 7" 2" 1-1/4" 1-1/2" 40° 150 PSI 220°F 16 hg 6.80 lbs
HTDRF20x7 2" 7" 2" 1-1/4" 1-1/2" 40° 150 PSI 220°F 16 hg 9.00 lbs
HTDRF25x7 2-1/2" 7" 2" 1-1/4" 1-1/2" 40° 150 PSI 220°F 16 hg 13.30 lbs
HTDRF30x7 3" 7" 2" 1-1/4" 1-1/2" 40° 150 PSI 220°F 16 hg 14.30 lbs
HTDRF40x9 4" 9" 2-1/4" 1-1/2" 1-3/4" 35° 150 PSI 220°F 16 hg 20.30 lbs
HTDRF50x9 5" 9" 2-1/4" 1-1/2" 1-3/4" 35° 150 PSI 220°F 16 hg 24.50 lbs
HTDRF60x9 6" 9" 2-1/4" 1-1/2" 1-3/4" 35° 150 PSI 220°F 16 hg 29.50 lbs
HTDRF80x13 8" 13" 2-1/2" 1-1/2" 1-3/4" 30° 150 PSI 220°F 16 hg 43.80 lbs
HTDRF100x13 10" 13" 2-1/2" 1-1/2" 1-3/4" 30° 150 PSI 220°F 16 hg 64.10 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.

Shop Parts by Kuriyama
