Kuriyama of America Inc.

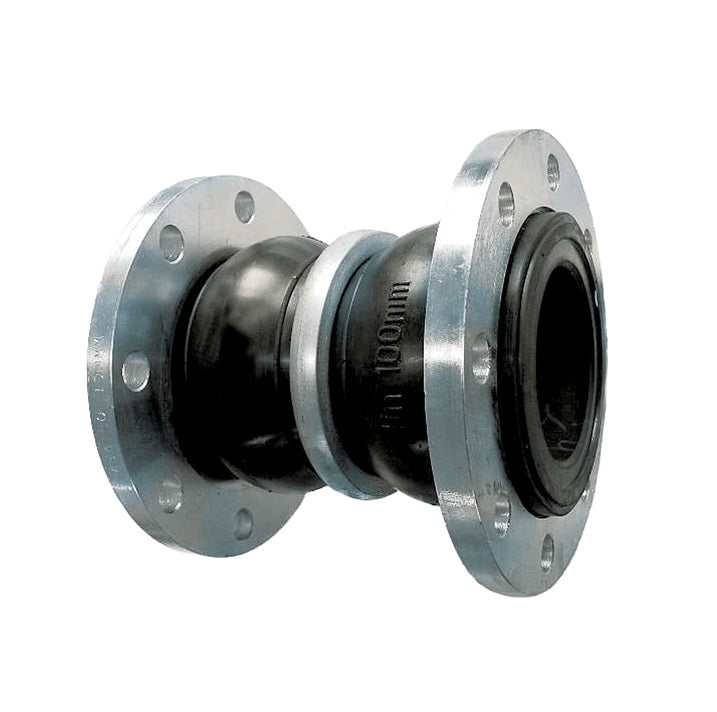

HTDRF Series | Double Sphere Rubber Expansion Joints | Flange Ends

Excellent for use with moderate chemicals, most oils, fats, grease, and many solvents.

Allows for four-way movement.

Specifications for Variant SKU: HTDRF30X7 Kuriyama
Series:	HTDRF Series
Shape (Orientation):	Straight
Ends Configuration:	3in 150# Flange, 3in 150# Flange, Some Ends Match
Material(s):	Carbon Steel, Nylon
Applicable Specs & Approvals:	ANSI B16.56, ASTM A105

What are the Applications?

Excellent for use with moderate chemicals, most oils, fats, grease, and many solvents.
NOTE: Not for use with oxidizing acids, esters, and keytones.

What are the Features?

Excellent ability to absorb vibration and sound.
Allows for four-way movement.
Withstands high pressure.
Easy installation using either floating flanges or threaded unions.
Excellent for use with moderate chemicals, most oils, fats, grease, and many solvents.
A retention ring is supplied with all double sphere flanged expansion joints.

What are the Materials?

Nylon fabric-reinforced neoprene body.
HTSRF and HTDRF series supplied with forged carbon steel flanges.
HTDRU supplied with ductile iron plated pipe unions.
Flanges meet ANSI B16.56 and ASTM A-105 specifications.

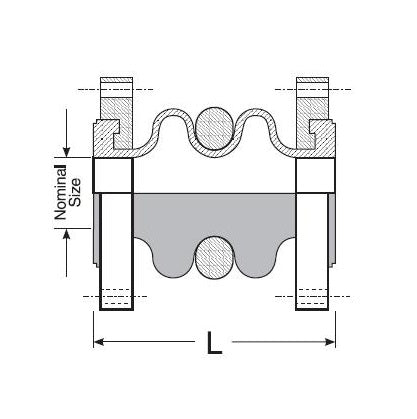

Part Number	Size (in)	Length (L - in)	Allowable Movement				Operating Conditions
Part Number	Size (in)	Length (L - in)	Axial Compression (in)	Axial Elongation (in)	Transverse Deflection (in)	Angular Deflection (Degrees)	Max. Pressure (psi)	Max. Temp. (°F)	Vacuum (hg)	Weight Each (lbs)
HTDRF12x7	1-1/4"	7"	2"	1-1/4"	1-1/2"	40°	150 PSI	220°F	16 hg	5.30 lbs
HTDRF15x7	1-1/2"	7"	2"	1-1/4"	1-1/2"	40°	150 PSI	220°F	16 hg	6.80 lbs
HTDRF20x7	2"	7"	2"	1-1/4"	1-1/2"	40°	150 PSI	220°F	16 hg	9.00 lbs
HTDRF25x7	2-1/2"	7"	2"	1-1/4"	1-1/2"	40°	150 PSI	220°F	16 hg	13.30 lbs
HTDRF30x7	3"	7"	2"	1-1/4"	1-1/2"	40°	150 PSI	220°F	16 hg	14.30 lbs
HTDRF40x9	4"	9"	2-1/4"	1-1/2"	1-3/4"	35°	150 PSI	220°F	16 hg	20.30 lbs
HTDRF50x9	5"	9"	2-1/4"	1-1/2"	1-3/4"	35°	150 PSI	220°F	16 hg	24.50 lbs
HTDRF60x9	6"	9"	2-1/4"	1-1/2"	1-3/4"	35°	150 PSI	220°F	16 hg	29.50 lbs
HTDRF80x13	8"	13"	2-1/2"	1-1/2"	1-3/4"	30°	150 PSI	220°F	16 hg	43.80 lbs
HTDRF100x13	10"	13"	2-1/2"	1-1/2"	1-3/4"	30°	150 PSI	220°F	16 hg	64.10 lbs
