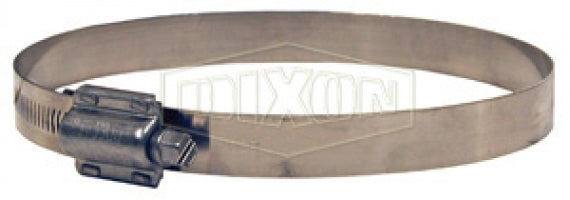

HTM350 by Dixon Valve | Style HTM | Hi Torque Worm Gear Clamp | 5/8" Band Width | Hose OD Range: from 2-3/4" to 3-5/8" | 300 Half Hard Stainless Steel Band | 410 Stainless Steel Screw

Save $2.82

$7.05

$7.05 - $7.05

$7.05

$4.23

$4.23 - $4.23

$4.23

Dixon Valve
Hi Torque Worm Gear Clamp | Style HTM

Eight screw threads are engaged in the band simultaneously for incredible torquing drive (over 90 in. lbs.), sealing pressure and vibration resistance.

Specifications for Variant SKU: HTM350 Dixon
Series:	Style HTM
Material(s):	300 Stainless Steel, 410 Stainless Steel
Clamp Width:	0.625
Minimum Clamp I.D.:	2.75
Maximum Clamp I.D.:	3.625

Features:
Withstands more than three times the SAE torque requirements for worm-driven clamps.
Construction:
Slotted hex head screw design 300 Series Half Hard Stainless Steel 410 Stainless Steel Screw

Part Number	Band Width	Hose OD
Part Number	Band Width	From	To
HTM200	5/8"	1-1/4"	2-1/8"
HP2*	5/8"	1-1/4"	2-5/8"
HTM250	5/8"	1-3/4"	2-5/8"
HP3*	5/8"	2-1/8"	4-1/8"
HTM300	5/8"	2-1/4"	3-1/8"
HTM350	5/8"	2-3/4"	3-5/8"
HTM400	5/8"	3-1/2"	4-1/8"
HTM450	5/8"	3-3/4"	4-5/8"
HP4*	5/8"	4"	6-1/8"
HTM500	5/8"	4-1/4"	5-1/8"
HTM550	5/8"	4-3/4"	5-5/8"
HTM600	5/8"	5-1/4"	6-1/8"
HTM650	5/8"	5-3/4"	6-5/8"
HP5*	5/8"	6-1/8"	9-1/8"
HTM700	5/8"	6-1/4"	7-1/8"
HTM750	5/8"	6-3/4"	7-5/8"
HTM800	5/8"	7-1/4"	8-1/8"
HTM850	5/8"	7-3/4"	8-5/8"
HTM900	5/8"	8-1/4"	9-1/8"

* Extended hose O.D. range
