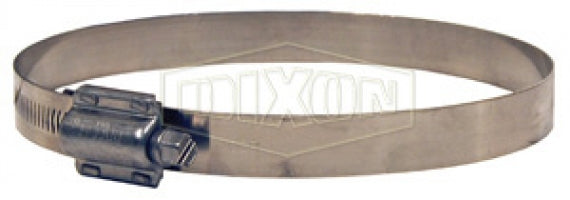

HTM500 by Dixon Valve | Style HTM | Hi Torque Worm Gear Clamp | 5/8" Band Width | Hose OD Range: from 4-1/4" to 5-1/8" | 300 Half Hard Stainless Steel Band | 410 Stainless Steel Screw

HTM500 by Dixon Valve | Style HTM | Hi Torque Worm Gear Clamp | 5/8" Band Width | Hose OD Range: from 4-1/4" to 5-1/8" | 300 Half Hard Stainless Steel Band | 410 Stainless Steel Screw

Save $0.51 Save $0.51
$4.61
$4.61 - $4.61
$4.61
$4.10
$4.10 - $4.10
$4.10

Dixon Valve
Hi Torque Worm Gear Clamp | Style HTM

Eight screw threads are engaged in the band simultaneously for incredible torquing drive (over 90 in. lbs.), sealing pressure and vibration resistance.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: HTM500 Dixon
Series: Style HTM
Material(s): 300 Stainless Steel, 410 Stainless Steel
Clamp Width: 0.625
Minimum Clamp I.D.: 4.25
Maximum Clamp I.D.: 5.125
Features:
  • Withstands more than three times the SAE torque requirements for worm-driven clamps.
Construction:
  • Slotted hex head screw design
  • 300 Series Half Hard Stainless Steel
  • 410 Stainless Steel Screw
Part Number Band Width Hose OD
From To
HTM200 5/8" 1-1/4" 2-1/8"
HP2* 5/8" 1-1/4" 2-5/8"
HTM250 5/8" 1-3/4" 2-5/8"
HP3* 5/8" 2-1/8" 4-1/8"
HTM300 5/8" 2-1/4" 3-1/8"
HTM350 5/8" 2-3/4" 3-5/8"
HTM400 5/8" 3-1/2" 4-1/8"
HTM450 5/8" 3-3/4" 4-5/8"
HP4* 5/8" 4" 6-1/8"
HTM500 5/8" 4-1/4" 5-1/8"
HTM550 5/8" 4-3/4" 5-5/8"
HTM600 5/8" 5-1/4" 6-1/8"
HTM650 5/8" 5-3/4" 6-5/8"
HP5* 5/8" 6-1/8" 9-1/8"
HTM700 5/8" 6-1/4" 7-1/8"
HTM750 5/8" 6-3/4" 7-5/8"
HTM800 5/8" 7-1/4" 8-1/8"
HTM850 5/8" 7-3/4" 8-5/8"
HTM900 5/8" 8-1/4" 9-1/8"

* Extended hose O.D. range
