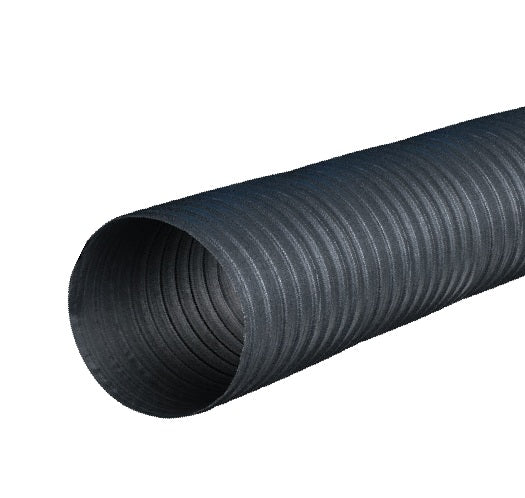

HTNP2-1000X25 FLEXAIR™ by Kuriyama | Neo-Duct® | HTNP2™ Series | Neoprene Coated, Two-Ply Polyester Ducting Hose | 10" ID | 25ft Length

HTNP2-1000X25 FLEXAIR™ by Kuriyama | Neo-Duct® | HTNP2™ Series | Neoprene Coated, Two-Ply Polyester Ducting Hose | 10" ID | 25ft Length

Save $429.04 Save $429.04
$852.04
$852.04 - $852.04
$852.04
$423.00
$423.00 - $423.00
$423.00

FLEXAIR™ by Kuriyama
Neo-Duct® | HTNP2™ Series | Neoprene Coated, Two-Ply Polyester Ducting Hose

Designed for efficient air and material movement, including ventilation, fume and dust control, high-temperature air handling, and light-duty material transfer applications.

Made in the USA.

Package Quantity: 25 Foot

Specifications for Variant SKU: HTNP2-1000X25 Kuriyama | 25 |
Brand: FLEXAIR
Series: Neo-Duct, HTNP2 Series
Hose Color(s): Black
Internal Diameter: 10in
Tubing Construction: Neoprene Coated Polyester
Applicable Specs & Approvals: RoHS Compliant, UL 94V-0 Flammability Rating
General Applications:
  • Ducting, ventilation & fume removal
  • Dust control
  • High temperature air handling
  • Material handling - light duty
Construction:
  • Neoprene coated, two-ply polyester hose with steel wire helix.
Specifications:
  • RoHS
  • UL94V-0
Service Temperature Range:
  • -65°F (-54°C) to +250°F (+127°C)*
    *Actual service temperature range is application dependent
Features and Advantages:
  • Neoprene Coated Polyester Material - Heat and flame resistant tube well suited for air handling and fume control. More durable than double-ply cotton hoses, exhibiting good crush resistance and tensile strength.
  • Steel Wire Helix - Highly durable steel wire provides strength and allows for use at higher temperatures without risk of hose deformation. Wire can be grounded for static dissipation.
  • UL Information - The Neoprene coated Polyester material has been tested and conforms to UL94V-0.
  • "Cold-Flex" Material - Hose remains flexible in sub-zero temperatures.
Notes:
  • Service life may vary depending on operating conditions and type of material being conveyed.
  • CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.
Part Number
25ft Length		 ID Min. Bend
Radius		 Max Working
Pressure
(PSI)		 Weight
in mm at
68°F		 at
68°F		 (lbs/ft)
HTNP2-150X25 1-1/2" 38.1mm 2.6" 32 PSI 0.16 lbs/ft
HTNP2-200X25 2" 50.8mm 3.5" 30 PSI 0.22 lbs/ft
HTNP2-250X25 2-1/2" 63.5mm 4" 28 PSI 0.28 lbs/ft
HTNP2-300X25 3" 76.2mm 5" 25 PSI 0.33 lbs/ft
HTNP2-350X25 3-1/2" 88.9mm 5.7" 24 PSI 0.42 lbs/ft
HTNP2-400X25 4" 101.6mm 6.5" 23 PSI 0.48 lbs/ft
HTNP2-500X25 5" 127.0mm 7.5" 22 PSI 0.61 lbs/ft
HTNP2-600X25 6" 152.4mm 9" 21 PSI 0.70 lbs/ft
HTNP2-700X25 7" 177.8mm 9.5" 20 PSI 0.92 lbs/ft
HTNP2-800X25 8" 203.2mm 10" 19 PSI 1.04 lbs/ft
HTNP2-1000X25 10" 254.0mm 11" 18 PSI 1.36 lbs/ft
HTNP2-1200X25 12" 304.8mm 13.5" 17 PSI 1.85 lbs/ft
HTNP2-1400X25 14" 355.6mm 15.5" 16 PSI 2.10 lbs/ft
HTNP2-1600X25 16" 406.4mm 18.5" 15 PSI 2.40 lbs/ft
HTNP2-1800X25 18" 457.2mm 22" 6 PSI 2.70 lbs/ft
HTNP2-2000X25 20" 508.0mm 24" 4 PSI 3.00 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
