HTS4150-500X25 Hose Tec® by Kuriyama | HTS4150 Series | Rough Bore Interlocked Metal Hose | Light Weight | 5" ID | 304 Stainless Steel | 25ft Length

Save $245.87

$714.17

$714.17 - $714.17

$714.17

$468.30

$468.30 - $468.30

$468.30

Hose Tec® by Kuriyama
HTG4150 / HTS4150 Series | Rough Bore (Unlined) Interlocked Metal Hose | Light Weight

Built for rugged performance in demanding environments, this hose handles abrasive materials, dry bulk transfer, grain, fly ash, and high-temperature air or gas. It's also ideal for BOP protection, vacuum trucks, and as protective shielding for hoses in heavy-duty unloading and exhaust applications.

Made in the USA.

Package Quantity: 25 Foot

Specifications for Variant SKU: HTS4150-500X25 Kuriyama \| 25 \|
Brand:	Hose Tec
Series:	HTS4150 Series
Internal Diameter:	5in
Tubing Construction:	304 Stainless Steel

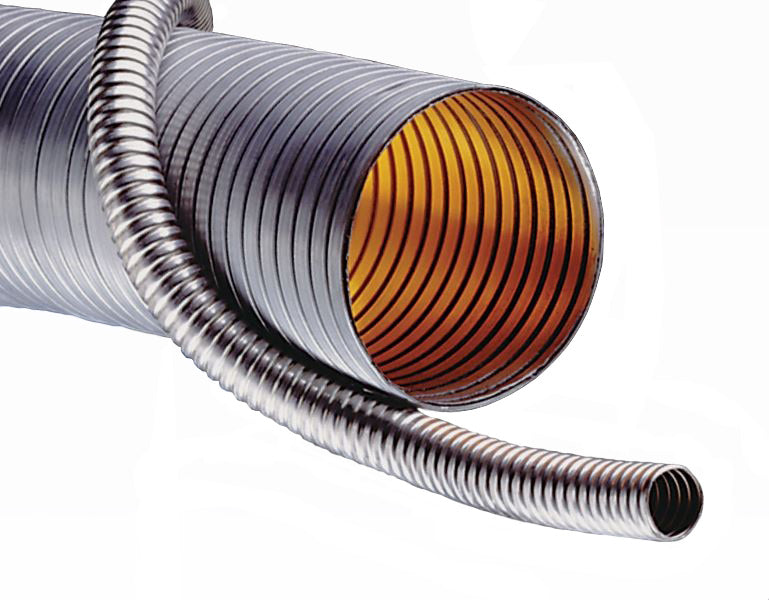

Interlocked Metal Hose

Kuriyama HTG4150 & HTS4150 Series

Interlocked metal hose wound from a single strip of galvanized (HTG4150) or 304 stainless steel (HTS4150), built for high-temperature transfer, abrasive materials, and full-vacuum service.

⚡

Conductive

Prevents static build-up and "hose arcing"

♨

Heat Resistant

To +750°F galvanized, +1,500°F stainless

◎

Full Vacuum

Rated for full vacuum service

⚙

Abrasion Resistant

Steel construction stands up to damaging materials

1

What is this product used for?

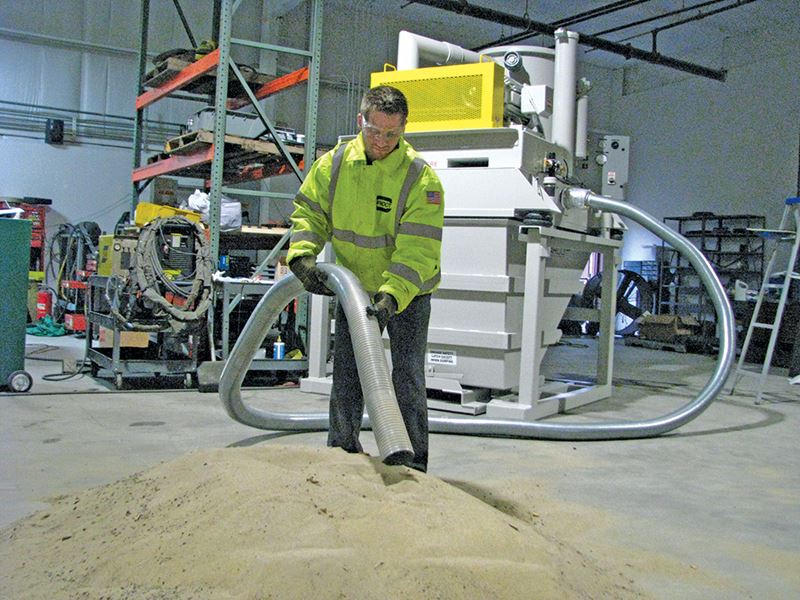

Abrasive material handling
BOP (Blow out Protection) for hydraulic, cryogenic and other high pressure hoses
Bulk truck and railcar unloading
Dry bulk transfer
Fly ash and soda handling
Grain handling
Protective armor/shielding for hoses
Transfer of high temperature air, gasses and materials
Truck tailpipe exhaust
Vacuum trucks and equipment

2

What are the key specifications?

Construction

Single strip of galvanized or 304 stainless steel wound into an interlocked metal hose, with or without packing materials

Service Temperature — Galvanized

To +750°F (+399°C)

Service Temperature — Stainless

To +1,500°F (+816°C)

Standard Length

25 ft

Size Range

1-1/2" to 11" ID

3

What are the main product features?

Conductive — Prevents the build-up of static electricity eliminating the risk of "hose arcing."
Flexible — Corrugations allow for greater flexibility than lined metal hose.
Abrasion Resistant and Durable — Steel construction resists damage from abrasive and damaging materials.
Corrosion Resistant (Stainless Only) — 304 stainless version resists corrosion making it resistant to the elements.
Heat Resistant — Can withstand very high temperatures allowing for the transfer of hot materials.
Full Vacuum — Suitable for full vacuum applications.

4

Which sizes are available?

Galvanized Steel Part Number (25 ft Length)	304 Stainless Steel Part Number (25 ft Length)	ID (in)	Wall Thickness (in)	Min. Inside Bend Radius (in)	Weight (lbs/ft)
HTG4150-150X25	HTS4150-150X25	1-1/2"	0.0150"	5.50"	0.70
HTG4150-162X25	—	1-5/8"	0.0150"	5.75"	0.75
HTG4150-175X25	—	1-3/4"	0.0150"	6.00"	0.80
HTG4150-200X25	HTS4150-200X25	2"	0.0150"	6.50"	0.90
HTG4150-250X25	HTS4150-250X25	2-1/2"	0.0150"	8.00"	1.20
—	HTS4150-275X25	2-3/4"	0.0150"	8.25"	1.30
HTG4150-300X25	HTS4150-300X25	3"	0.0150"	10.50"	1.40
HTG4150-325X25	HTS4150-325X25	3-1/4"	0.0150"	11.25"	1.50
HTG4150-350X25	—	3-1/2"	0.0150"	12.00"	1.60
HTG4150-400X25	HTS4150-400X25	4"	0.0150"	13.50"	1.80
HTG4150-450X25	—	4-1/2"	0.0150"	15.00"	2.00
HTG4150-500X25	HTS4150-500X25	5"	0.0150"	16.00"	2.30
—	HTS4150-525X25	5-1/4"	0.0150"	17.25"	2.40
HTG4150-600X25	HTS4150-600X25	6"	0.0150"	21.00"	2.70
HTG4150-650X25	HTS4150-650X25	6-1/2"	0.0150"	22.00"	2.95
HTG4150-700X25	—	7"	0.0150"	23.00"	3.20
HTG4150-800X25	HTS4150-800X25	8"	0.0150"	26.00"	3.60
—	HTS4150-900X25	9"	0.0150"	28.25"	4.05
—	HTS4150-950X25	9-1/2"	0.0150"	29.50"	4.25
HTG4150-1000X25	—	10"	0.0150"	30.50"	4.50
—	HTS4150-1100X25	11"	0.0150"	33.00"	5.00

i

Galvanized (HTG4150) and 304 stainless (HTS4150) versions are not available in every size — see the chart above for availability by ID.

How is this product sold?

Sold in standard 25 ft lengths.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
