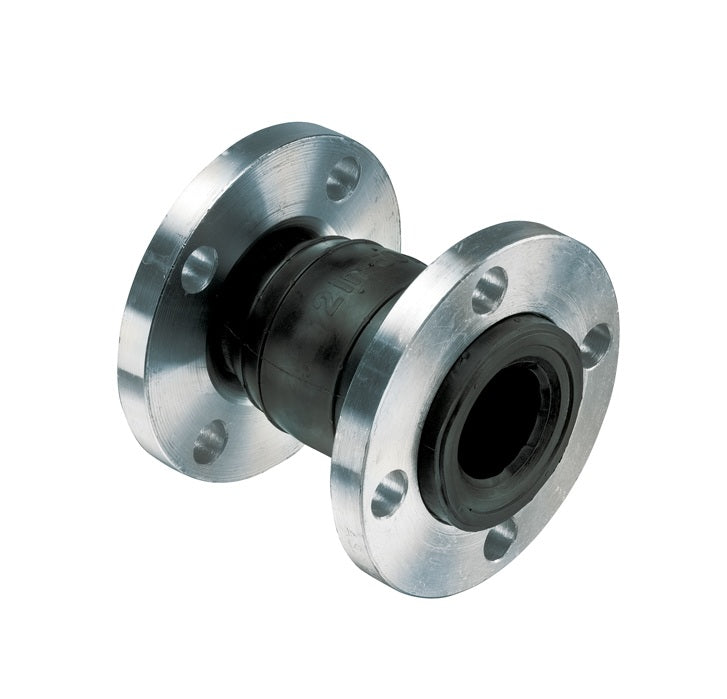

HTSRF25X6 by Kuriyama | HTSRF Series | Single Sphere Rubber Expansion Joint | Flange Ends | 2-1/2" Size | 6" Length | Carbon Steel / Nylon

Save $33.00

$140.66

$140.66 - $140.66

$140.66

$107.66

$107.66 - $107.66

$107.66

Kuriyama of America Inc.
HTSRF Series | Single Sphere Rubber Expansion Joints

Excellent for use with moderate chemicals, most oils, fats, grease, and many solvents.

Allows for four-way movement.

Specifications for Variant SKU: HTSRF25X6 Kuriyama
Series:	HTSRF Series
Shape (Orientation):	Straight
Ends Configuration:	2-1/2in 150# Flange, 2-1/2in 150# Flange, Some Ends Match
Material(s):	Carbon Steel, Nylon
Applicable Specs & Approvals:	ANSI B16.56, ASTM A105

What are the Applications?

Excellent for use with moderate chemicals, most oils, fats, grease, and many solvents.
NOTE: Not for use with oxidizing acids, esters, and keytones.

What are the Features?

Excellent ability to absorb vibration and sound.
Allows for four-way movement.
Withstands high pressure.
Easy installation using either floating flanges or threaded unions.
Excellent for use with moderate chemicals, most oils, fats, grease, and many solvents.
A retention ring is supplied with all double sphere flanged expansion joints.

What are the Materials?

Nylon fabric-reinforced neoprene body.
HTSRF and HTDRF series supplied with forged carbon steel flanges.
HTDRU supplied with ductile iron plated pipe unions.
Flanges meet ANSI B16.56 and ASTM A-105 specifications.

Part Number	Size (in)	Length (L - in)	Allowable Movement				Operating Conditions
Part Number	Size (in)	Length (L - in)	Axial Compression (in)	Axial Elongation (in)	Transverse Deflection (in)	Angular Deflection (Degrees)	Max. Pressure (psi)	Max. Temp. (°F)	Vacuum (hg)	Weight Each (lbs)
HTSRF12x6	1-1/4"	6"	1/2"	3/8"	1/2"	15°	225 PSI	220°F	16 hg	5.00 lbs
HTSRF15x6	1-1/2"	6"	1/2"	3/8"	1/2"	15°	225 PSI	220°F	16 hg	6.10 lbs
HTSRF20x6	2"	6"	1/2"	3/8"	1/2"	15°	225 PSI	220°F	16 hg	8.90 lbs
HTSRF25x6	2-1/2"	6"	1/2"	3/8"	1/2"	15°	225 PSI	220°F	16 hg	12.30 lbs
HTSRF30x6	3"	6	1/2"	3/8"	1/2"	15°	225 PSI	220°F	16 hg	14.00 lbs
HTSRF40x6	4"	6"	5/8"	3/8"	1/2"	15°	225 PSI	220°F	16 hg	18.30 lbs
HTSRF50x6	5"	6"	5/8"	3/8"	1/2"	15°	225 PSI	220°F	16 hg	22.80 lbs
HTSRF60x6	6"	6"	5/8"	3/8"	1/2"	15°	225 PSI	220°F	16 hg	26.80 lbs
HTSRF80x6	8"	6"	5/8"	3/8"	1/2"	15°	225 PSI	220°F	16 hg	40.60 lbs
HTSRF100x8	10"	8"	3/4"	1/2"	3/4"	15°	225 PSI	220°F	16 hg	56.60 lbs
HTSRF120x8	12"	8"	3/4"	1/2"	3/4"	15°	225 PSI	220°F	16 hg	83.00 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
