HTSRF40X6 by Kuriyama | HTSRF Series | Single Sphere Rubber Expansion Joint | Flange Ends | 4" Size | 6" Length | Carbon Steel / Nylon
HTSRF40X6 by Kuriyama | HTSRF Series | Single Sphere Rubber Expansion Joint | Flange Ends | 4" Size | 6" Length | Carbon Steel / Nylon
HTSRF40X6 by Kuriyama | HTSRF Series | Single Sphere Rubber Expansion Joint | Flange Ends | 4" Size | 6" Length | Carbon Steel / Nylon

HTSRF40X6 by Kuriyama | HTSRF Series | Single Sphere Rubber Expansion Joint | Flange Ends | 4" Size | 6" Length | Carbon Steel / Nylon

Save $45.33 Save $45.33
$194.70
$194.70 - $194.70
$194.70
$149.37
$149.37 - $149.37
$149.37

Kuriyama of America Inc.
HTSRF Series | Single Sphere Rubber Expansion Joints

Excellent for use with moderate chemicals, most oils, fats, grease, and many solvents.

Allows for four-way movement.
Specifications for Variant SKU: HTSRF40X6 Kuriyama
Series: HTSRF Series
Shape (Orientation): Straight
Ends Configuration: 4in 150# Flange, 4in 150# Flange, Some Ends Match
Material(s): Carbon Steel, Nylon
Applicable Specs & Approvals: ANSI B16.56, ASTM A105

What are the Applications?

  • Excellent for use with moderate chemicals, most oils, fats, grease, and many solvents.
  • NOTE: Not for use with oxidizing acids, esters, and keytones.

What are the Features?

  • Excellent ability to absorb vibration and sound.
  • Allows for four-way movement.
  • Withstands high pressure.
  • Easy installation using either floating flanges or threaded unions.
  • Excellent for use with moderate chemicals, most oils, fats, grease, and many solvents.
  • A retention ring is supplied with all double sphere flanged expansion joints.

What are the Materials?

  • Nylon fabric-reinforced neoprene body.
  • HTSRF and HTDRF series supplied with forged carbon steel flanges.
  • HTDRU supplied with ductile iron plated pipe unions.
  • Flanges meet ANSI B16.56 and ASTM A-105 specifications.

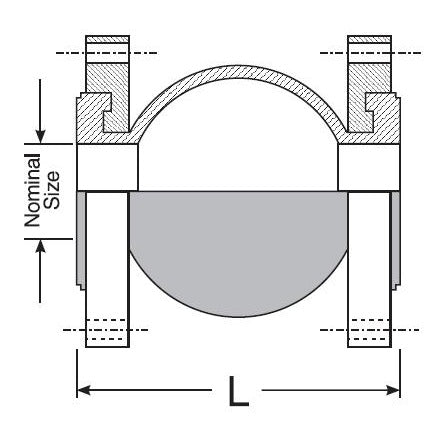

Part Number Size
(in)		 Length
(L - in)		 Allowable Movement Operating Conditions
Axial
Compression
(in)		 Axial
Elongation
(in)		 Transverse
Deflection
(in)		 Angular
Deflection
(Degrees)		 Max.
Pressure
(psi)		 Max.
Temp.
(°F)		 Vacuum
(hg)		 Weight
Each
(lbs)
HTSRF12x6 1-1/4" 6" 1/2" 3/8" 1/2" 15° 225 PSI 220°F 16 hg 5.00 lbs
HTSRF15x6 1-1/2" 6" 1/2" 3/8" 1/2" 15° 225 PSI 220°F 16 hg 6.10 lbs
HTSRF20x6 2" 6" 1/2" 3/8" 1/2" 15° 225 PSI 220°F 16 hg 8.90 lbs
HTSRF25x6 2-1/2" 6" 1/2" 3/8" 1/2" 15° 225 PSI 220°F 16 hg 12.30 lbs
HTSRF30x6 3" 6 1/2" 3/8" 1/2" 15° 225 PSI 220°F 16 hg 14.00 lbs
HTSRF40x6 4" 6" 5/8" 3/8" 1/2" 15° 225 PSI 220°F 16 hg 18.30 lbs
HTSRF50x6 5" 6" 5/8" 3/8" 1/2" 15° 225 PSI 220°F 16 hg 22.80 lbs
HTSRF60x6 6" 6" 5/8" 3/8" 1/2" 15° 225 PSI 220°F 16 hg 26.80 lbs
HTSRF80x6 8" 6" 5/8" 3/8" 1/2" 15° 225 PSI 220°F 16 hg 40.60 lbs
HTSRF100x8 10" 8" 3/4" 1/2" 3/4" 15° 225 PSI 220°F 16 hg 56.60 lbs
HTSRF120x8 12" 8" 3/4" 1/2" 3/4" 15° 225 PSI 220°F 16 hg 83.00 lbs
