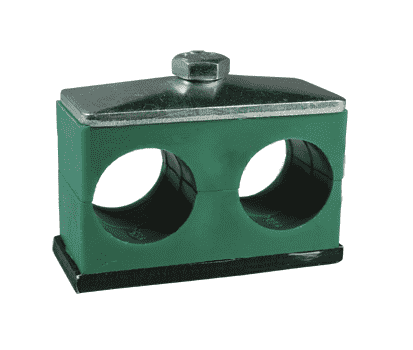

HTW16T Dixon Twin Series Pipe and Tube Clamp - 1" Tube

HTW16T Dixon Valve Twin Series Pipe and Tube Clamp - 1" Tube

Save $0.58 Save $0.58
$5.22
$5.22 - $5.22
$5.22
$4.64
$4.64 - $4.64
$4.64

Pipe and Tube Clamps - Twin Series Clamps - Steel & Polypropylene
Specifications for Variant SKU: HTW16T Dixon
Material(s): Polypropylene, Steel
Clamp Width: 1.18
Maximum Clamp I.D.: 1
Applications:
  • Use for standard hydraulics, general pipe construction, electric cables, etc.
Features:
  • Clamps are welded in place to secure the pipe or tubing.
  • Polypropylene cushions reduce wear due to vibration.
  • Standard and twin series clamps are recommended for systems with less than 1500 PSI without dynamic loads.
  • Heavy duty clamps are recommended for systems with greater than 1500 PSI operating pressure.
  • Kit includes clamp with weld plate, cover plate and bolts.
Part Number Size Length Width Height Weight (Lbs.)
HTW02P 1/8" Pipe ID 1.46" 1.18" 1.36" 0.2100
HTW04P 1/4" Pipe ID 1.46" 1.18" 1.36" 0.3100
HTW04T 1/4" Tube 1.46" 1.18" 1.36" 0.2100
HTW05T 5/16" Tube 1.46" 1.18" 1.36" 0.2100
HTW06P 3/8" Pipe ID 2.17" 1.18" 1.42" 0.3100
HTW06T 3/8" Tube 1.46" 1.18" 1.36" 0.2100
HTW08P 1/2" Pipe ID 2.76" 1.18" 1.85" 0.3900
HTW08T 1/2" Tube 2.17" 1.18" 1.42" 0.3100
HTW10T 5/8" Tube 2.17" 1.18" 1.42" 0.3100
HTW12P 3/4" Pipe ID 3.35" 1.18" 2.05" 0.4900
HTW12T 3/4" Tube 2.76" 1.18" 1.85" 0.4000
HTW14T 7/8" Tube 2.76" 1.18" 1.85" 0.3900
HTW16P 1" Pipe ID 4.33" 1.18" 2.52" 0.6500
HTW16T 1" Tube 2.76" 1.18" 1.85" 0.3900
HTW20P 1-1/4" Pipe ID 4.33" 1.18" 2.52" 0.6200
HTW20T 1-1/4" Tube 4.33" 1.18" 2.52" 0.6500
HTW24T 1-1/2" Tube 4.33" 1.18" 2.52" 0.6400
