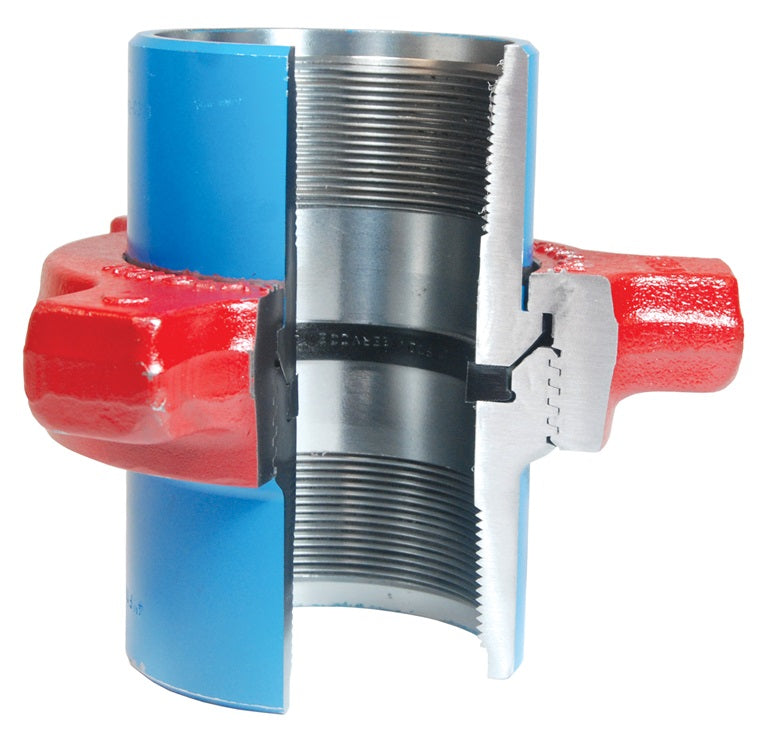

HU1002300 by Dixon Valve | Hammer Union | 1002-Series | Threaded | 10,000 NSCWP (PSI) | 3" Size | Forged Steel

Save $201.63

$504.07

$504.07 - $504.07

$504.07

$302.44

$302.44 - $302.44

$302.44

Dixon Valve
Hammer Union | 1002-Series

For use in high pressure systems and truck mounting applications running water, oil or mud.

Specifications for Variant SKU: HU1002300 Dixon
Series:	1002-Series
Shape (Orientation):	Straight
Ends Configuration:	3in Female NPT, 3in Female NPT, Some Ends Match
Material(s):	Steel

Features:
Lip type seal ring minimizes fluid flow turbulence while creating a pressure seal.
Construction:
Forged Steel. Blue sub, red nut.
Specifications:
Temperature range: -20°F to 250°F (-29°C to 121°C). Up to 10,000 PSI NSCWP (non-shock cold working pressure). Pressure rating given at ambient temperature 70°F/21°C.
Safety Notes:
Hammer unions work at extremely high pressures. Mismatching components of one series with another (i.e. series 602 with series 1502) can lead to destruction of property, serious bodily injury or death.

Part Number	Size	Configuration	NSCWP (PSI)
HU1002100	1"	Threaded	10000 PSI NSCWP
HU1002200	2"	Threaded	10000 PSI NSCWP
HU1002300	3"	Threaded	10000 PSI NSCWP
HU1002400	4"	Threaded	10000 PSI NSCWP

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
