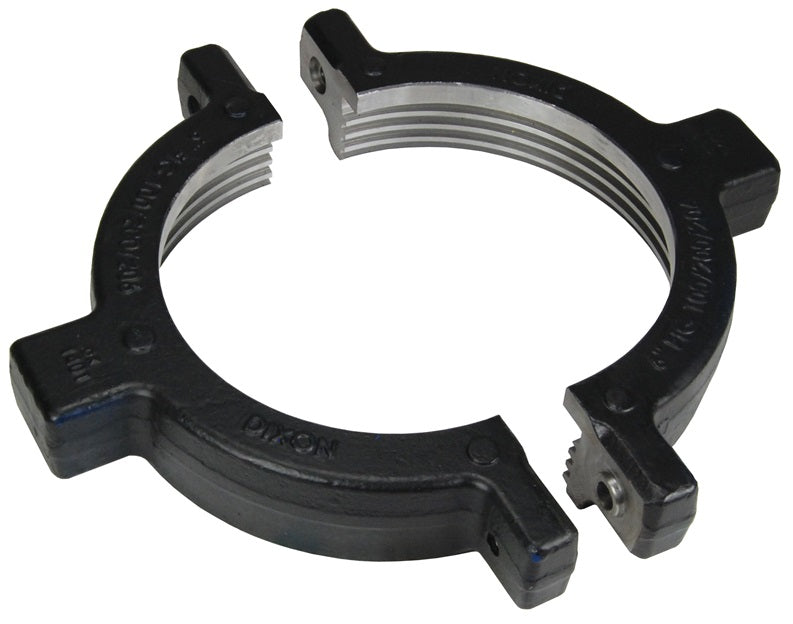

HU100600RN by Dixon Valve | Boss® LPS Hammer Union Split Nut | Figure 100 | Two-Piece | 6" Size | Forged Steel (AISI Standard)

Save $30.16

$271.44

$271.44 - $271.44

$271.44

$241.28

$241.28 - $241.28

$241.28

Dixon Valve
Boss® | LPS Hammer Union Split Nut | Two-Piece

Replacement for damaged hammer union nuts.

Used with male one-piece flange adapters.

Interchangeable with reliable brands.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: HU100600RN Dixon
Brand:	Boss
Shape (Orientation):	No Orientation
Material(s):	Steel

Features:
Lug design provides enlarged surface area to hammer. Repair nut is pinned and bolted for perfect alignment. Nut can be installed on pre-existing hammer union assembly. 4" Figure 200/206 nut is interchangeable with reliable brands. 6" and 8" Figure 100/200/206 nuts are interchangeable with reliable brands.
Use:
Dixon recommends using Loctite® Threadlocker Red 271™ when bolting together two-piece hammer union nuts to ensure that bolts do not loosen when in service. Bolt torque recommendation is 60 foot pounds. Option two is to weld the seams of the split nut.
Construction:
Includes Bolts. Forged steel meets AISI standards.
Specification:
Cold working pressure: Figure 50 500 PSI, Figure 100 1,000 PSI, Figure 200/206 2,000 PSI.

Part Number	Size	Description
HU200400RN	4"	Figure 200/206, Blue (Includes Bolts)
HUS500RN	5"	Figure 50, Black (Includes Bolts)
HU100600RN	6"	Figure 100, Black (Includes Bolts)
HU200600RN	6"	Figure 200/206, Blue (Includes Bolts)
HU100800RN	8"	Figure 100, Black (Includes Bolts)
HU200800RN	8"	Figure 200/206, Blue (Includes Bolts)

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
