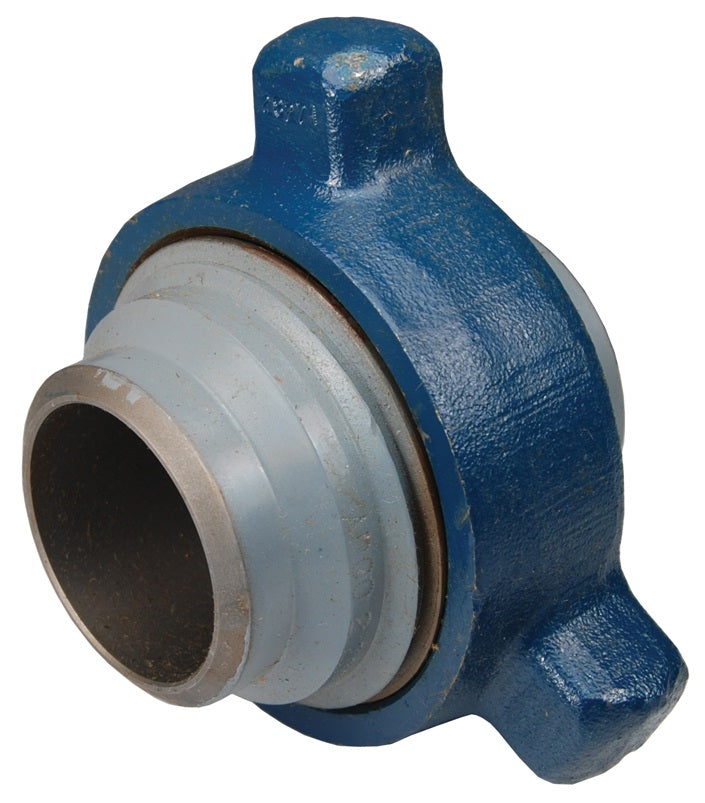

HU200200 by Dixon Valve | Boss® LPS Hammer Union | 200-Series | Threaded | 2,000 NSCWP (PSI) | 2" Size | Forged Steel

HU200200 by Dixon Valve | Boss® LPS Hammer Union | 200-Series | Threaded | 2,000 NSCWP (PSI) | 2" Size | Forged Steel

Save $4.28 Save $4.28
$38.55
$38.55 - $38.55
$38.55
$34.27
$34.27 - $34.27
$34.27

Dixon Valve
Boss® | LPS Hammer Union | 200-Series

Used in general service applications running air, water, oil or gas up to 2,000 PSI NSCWP (non-shock cold working pressure).
Specifications for Variant SKU: HU200200 Dixon
Brand: Boss
Series: 200 Series
Shape (Orientation): Straight
Ends Configuration: 2in Female NPT, 2in Female NPT, Some Ends Match
Material(s): Steel
Features:
  • Non-shocking cold water pressure means that the rated value is the maximum operating pressure at ambient temperature.
  • No spikes higher than this pressure.
  • No instantaneous pressure increases (0-2,000 PSIG in 1/4 of a second).
Construction:
  • Forged Steel.
  • Nitrile O-ring mounted sub provides excellent sealing properties.
  • Grey sub, blue nut.
Specification:
  • Temperature range: -20°F to 250°F (-29°C to 121°C)
  • Ambient temperature: 70°F (21°C)
Safety Notes:
  • Hammer unions work at extremely high pressures, mismatching components of one series with another (i.e. series 602 with series 1502) can lead to destruction of property, serious bodily injury, or death.
Part Number Size Configuration NSCWP (PSI)
HU200100 1" Threaded 2,000 PSI NSCWP
HU200150 1-1/2" Threaded 2,000 PSI NSCWP
HU200200 2" Threaded 2,000 PSI NSCWP
HU200200BW* 2" Buttweld 2,000 PSI NSCWP
HU200250 2-1/2" Threaded 2,000 PSI NSCWP
HU200300 3" Threaded 2,000 PSI NSCWP
HU200400 4" Threaded 2,000 PSI NSCWP
HU200600 6" Threaded 2,000 PSI NSCWP
HU200800 8" Threaded 2,000 PSI NSCWP

* Buttweld ends are schedule 40.

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
