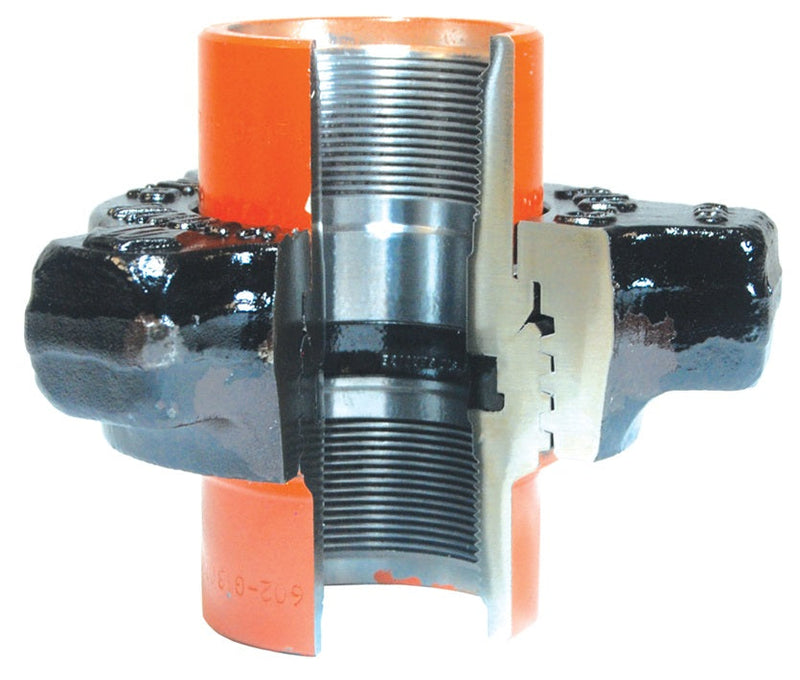

HU602300BW by Dixon Valve | Hammer Union | 602-Series | Buttweld | 6,000 NSCWP (PSI) | 3" Size | Forged Steel

Save $172.33

$430.82

$430.82 - $430.82

$430.82

$258.49

$258.49 - $258.49

$258.49

Dixon Valve
Hammer Union | 602-Series

For use in mud, manifold service and truck mounting applications running water, oil or mud service.

Specifications for Variant SKU: HU602300BW Dixon
Series:	602-Series
Shape (Orientation):	Straight
Ends Configuration:	3in Female NPT, 3in Female NPT, Some Ends Match
Material(s):	Steel

Features:
Lip type seal ring minimizes fluid flow turbulence while creating a pressure seal.
Construction:
Forged Steel. Orange sub, black nut.
Specifications:
Temperature range: -20°F to 250°F (-29°C to 121°C). Up to 6,000 PSI NSCWP (non-shock cold working pressure). Pressure rating given at ambient temperature 70°F/21°C.
Safety Notes:
Hammer unions work at extremely high pressures. Mismatching components of one series with another (i.e. series 602 with series 1502) can lead to destruction of property, serious bodily injury or death.

Part Number	Size	Configuration	NSCWP (PSI)
HU602100	1"	Threaded	6000 PSI NSCWP
HU602200	2"	Threaded	6000 PSI NSCWP
HU602300	3"	Threaded	6000 PSI NSCWP
HU602300BW*	3"	Buttweld	6000 PSI NSCWP
HU602400	4"	Threaded	6000 PSI NSCWP

* Buttweld ends are schedule 80
