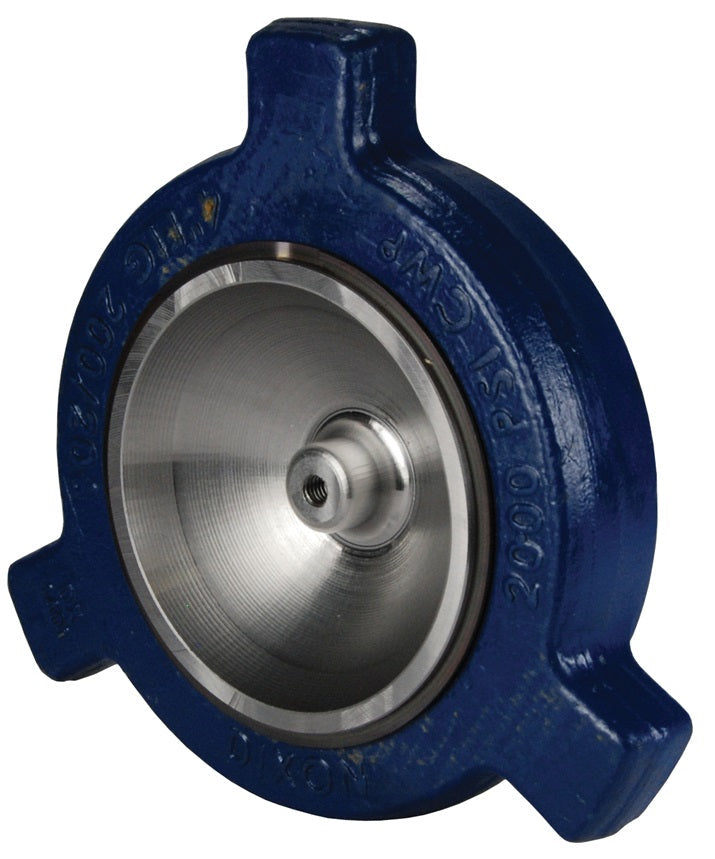

HUC206400BC by Dixon Valve | Boss® LPS Hammer Union Blanking Cap | Figure 206 | 4" Size | Blue With Nut/Plug Body and Retaining Ring With Bolt and Chain | Forged Steel

HUC206400BC by Dixon Valve | Boss® LPS Hammer Union Blanking Cap | Figure 206 | 4" Size | Blue With Nut/Plug Body and Retaining Ring With Bolt and Chain | Forged Steel

Save $21.46 Save $21.46
$193.16
$193.16 - $193.16
$193.16
$171.70
$171.70 - $171.70
$171.70

Dixon Valve
Boss® | LPS Hammer Union Blanking Cap

Prevents leakage of hydraulic fracturing fluids from hammer union connections used on manifolds and hose assemblies.

Hammer union caps and plugs can be used in pressurized service or as dust caps/plugs on site or when transferring equipment.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: HUC206400BC Dixon
Brand: Boss
Shape (Orientation): No Orientation
Material(s): Steel
Features:
  • Forged steel construction ensures longevity, reliability and performance.
  • Low profile design for tight applications.
  • Designed with reusable bull plug to rebuild cap.
  • Caps are designed with larger lugs for easier installation and disassembling
Construction:
  • Forged steel nut.
  • Iron bull plug to ASTM standards.
  • O-ring is Nitrile Rubber.
Specification:
  • Forged steel meets AISI standards.
Part Number Size Figure Includes
HUC206200 2" 206 Nut/Plug Body, O-Ring, and Retaining Ring
HUC100400 4" 100 Nut/Plug Body, O-Ring, and Retaining Ring
HUC206400 4" 206 Nut/Plug Body, O-Ring, and Retaining Ring
HUC206400BC 4" 206 Blue With Nut/Plug Body and Retaining Ring With Bolt and Chain
HUC207400 4" 207 Cap Only
HUC207400BC 4" 207 Blanking Cap With Bolt and Chain
HUC206600 6" 206 Nut/Plug Body, O-Ring, and Retaining Ring
HUC206800 8" 206 Nut/Plug Body, O-Ring, and Retaining Ring
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
