Kuriyama of America Inc.

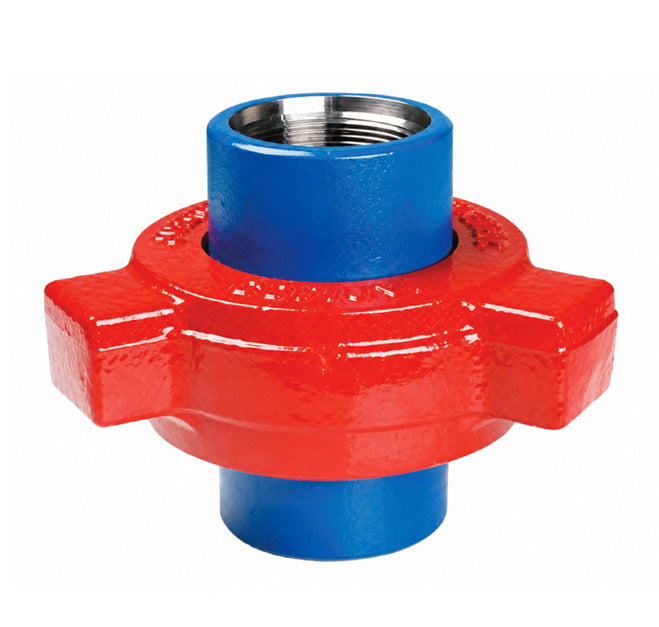

HUT1002 Series | Threaded Hammer Union | Figure 1002

Applications include oil, gas, air, and water.

Color-coded for easy identification.

Unions are interchangeable with like products.

Specifications for Variant SKU: HUT1002-2 Kuriyama
Series:	HUT1002 Series
Shape (Orientation):	Straight
Ends Configuration:	2in Female NPT, 2in Female NPT, Some Ends Match
Material(s):	Carbon Steel

What are the Features?

Applications include oil, gas, air, and water.
Color-coded for easy identification.
Unions are interchangeable with like products.
CWP (Cold Working Pressure) is the maximum pressure at +70¢ªF (+21¢ªC).

What are the Materials?

Body: AISI 4130 Carbon Steel.
Nut: AISI 4130 Carbon Steel.

Part Number	Size (in)	CWP Rating at 70°F	Weight Each (lbs)
HUT1002-2	2"	10000 PSI	12.60 lbs
HUT1002-3	3"	10000 PSI	22.60 lbs
HUT1002-4	4"	10000 PSI	36.10 lbs
