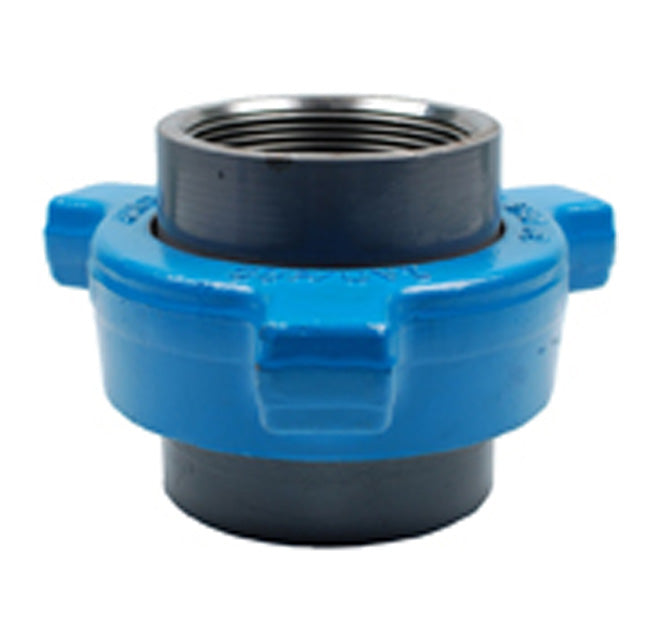

HUT200-6 by Kuriyama | HUT200 Series | Threaded Hammer Union | Figure 200 | 6" Size | 2000 PSI CWP | Carbon Steel

Save $84.91

$305.45

$305.45 - $305.45

$305.45

$220.54

$220.54 - $220.54

$220.54

Kuriyama of America Inc.
HUT200 Series | Threaded Hammer Union | Figure 200

Applications include oil, gas, air, and water.

Color-coded for easy identification.

Unions are interchangeable with like products.

Specifications for Variant SKU: HUT200-6 Kuriyama
Series:	HUT200 Series
Shape (Orientation):	Straight
Ends Configuration:	6in Female NPT, 6in Female NPT, Some Ends Match
Material(s):	Carbon Steel

What are the Features?

Applications include oil, gas, air, and water.
Color-coded for easy identification.
Unions are interchangeable with like products.
CWP (Cold Working Pressure) is the maximum pressure at +70¢ªF (+21¢ªC).

What are the Materials?

Body: A-105/AISI 1020 Carbon Steel.
Nut: A-105/AISI 1020 Carbon Steel.

Part Number	Size (in)	CWP Rating at 70°F	Weight Each (lbs)
HUT200-1	1"	2000 PSI	1.55 lbs
HUT200-2	2"	2000 PSI	4.55 lbs
HUT200-3	3"	2000 PSI	11.70 lbs
HUT200-4	4"	2000 PSI	19.00 lbs
HUT200-6	6"	2000 PSI	44.40 lbs
HUT200-8	8"	2000 PSI	71.45 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
