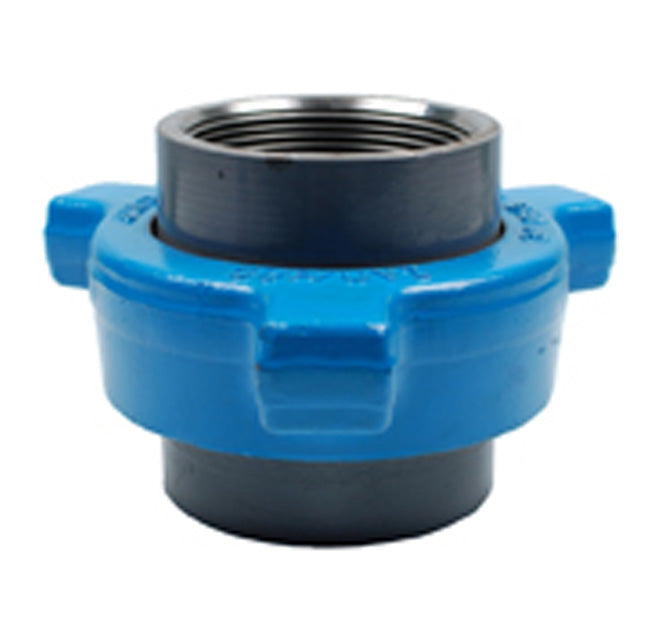

HUT206-4 by Kuriyama | HUT206 Series | Threaded Hammer Union | Figure 206 | 4" Size | 2000 PSI CWP | Carbon Steel

Save $38.91

$124.84

$124.84 - $124.84

$124.84

$85.93

$85.93 - $85.93

$85.93

Kuriyama of America Inc.
HUT206 Series | Threaded Hammer Union | Figure 206

Applications include oil, gas, air, and water.

Color-coded for easy identification.

Unions are interchangeable with like products.

Specifications for Variant SKU: HUT206-4 Kuriyama
Series:	HUT206 Series
Shape (Orientation):	Straight
Ends Configuration:	4in Female NPT, 4in Female NPT, Some Ends Match
Material(s):	Carbon Steel
Seal Material(s):	Buna-N/Nitrile Rubber

What are the Features?

Applications include oil, gas, air, and water.
Color-coded for easy identification.
Unions are interchangeable with like products.
CWP (Cold Working Pressure) is the maximum pressure at +70¢ªF (+21¢ªC).
Figure 206 supplied with a Buna-N O-Ring, which functions a secondary seal.

What are the Materials?

Body: A-105/AISI 1020 Carbon Steel.
Nut: A-105/AISI 1020 Carbon Steel.

Part Number	Size (in)	CWP Rating at 70°F	Weight Each (lbs)
HUT206-2	2"	2000 PSI	4.60 lbs
HUT206-3	3"	2000 PSI	11.80 lbs
HUT206-4	4"	2000 PSI	19.10 lbs
HUT206-6	6"	2000 PSI	45.00 lbs
HUT206-8	8"	2000 PSI	66.00 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
