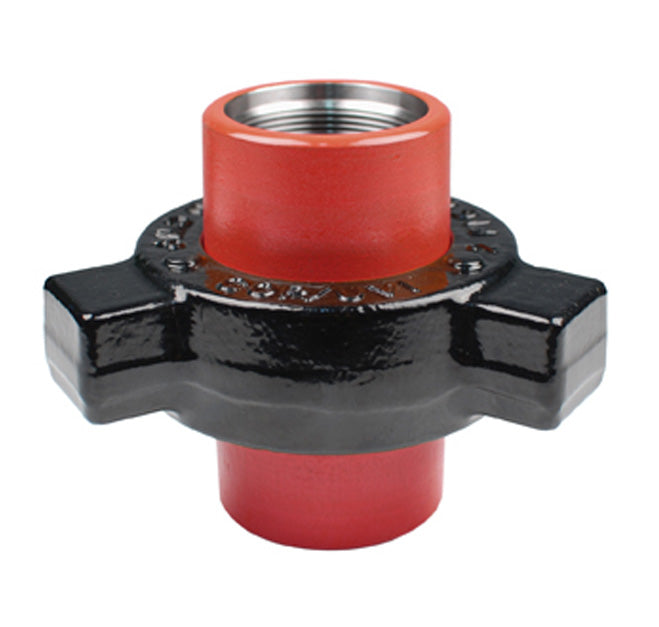

HUT400-2 by Kuriyama | HUT400 Series | Threaded Hammer Union | Figure 400 | 2" Size | 4000 PSI CWP | Carbon Steel

Save $26.49

$84.14

$84.14 - $84.14

$84.14

$57.65

$57.65 - $57.65

$57.65

Kuriyama of America Inc.
HUT400 Series | Threaded Hammer Union | Figure 400

Applications include oil, gas, air, and water.

Color-coded for easy identification.

Unions are interchangeable with like products.

Specifications for Variant SKU: HUT400-2 Kuriyama
Series:	HUT400 Series
Shape (Orientation):	Straight
Ends Configuration:	2in Female NPT, 2in Female NPT, Some Ends Match
Material(s):	Carbon Steel

What are the Features?

Applications include oil, gas, air, and water.
Color-coded for easy identification.
Unions are interchangeable with like products.
CWP (Cold Working Pressure) is the maximum pressure at +70¢ªF (+21¢ªC).

What are the Materials?

Body: AISI 1040 Carbon Steel.
Nut: AISI 1040 Carbon Steel.

Part Number	Size (in)	CWP Rating at 70°F	Weight Each (lbs)
HUT400-2	2"	4000 PSI	11.00 lbs
HUT400-3	3"	4000 PSI	19.60 lbs
HUT400-4	4"	4000 PSI	29.65 lbs
